Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Wall |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Intel Celeron J6412 |
| Socket | FCBGA1493 |
| Max CPU frequency | 2.6 GHz |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| ECC | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel UHD Graphics |
| Interfaces | HDMI |
Ethernet | |
| Controller Type | Intel i211, Intel i210 |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 1 |
| RS-485 | 4 |
| RS-232/422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek ALC897 |
Drive interfaces | |
| M.2 | 1 |
| mSATA | 1 |
Extension Slots | |
| Total | 2 |
| M.2 | 1 |
| M.2 Form Factor | 2242 M |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 1 |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

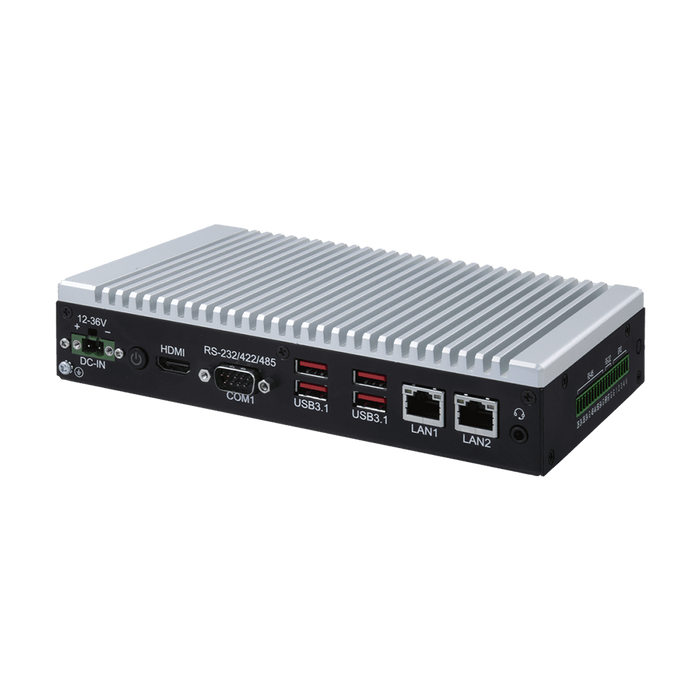

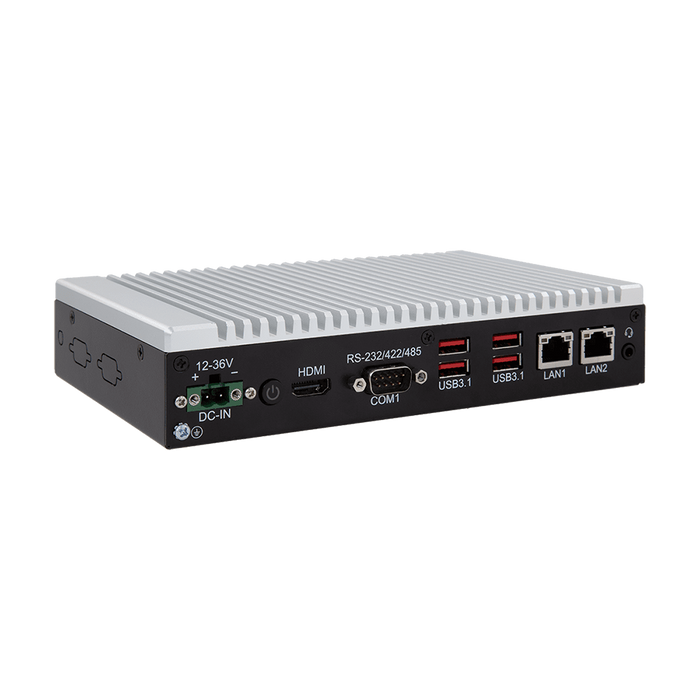

| Connectors | DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), 2xCOM (terminal block) |
System Power Input | |
| Input Voltage DC | 12...36 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10, Ubuntu 20.04 |
Dimensions and weight | |
| Width | 200 mm |
| Height | 130 mm |
| Depth | 44 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Humidity | 5-95% |
| Vibration | 5~500Hz. 2Grms. operation |
| Shock | Operation: 10G@11ms; Non-operation: 30G@11ms |
Standards and Certifications | |
| Certifications | CE/FCC |
