Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Wall, Desktop |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Alder Lake |
| Processor Installed | Intel N97 |
| Socket | FCBGA1264 |
| Max CPU frequency | 3.6 GHz |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| ECC | No |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel UHD Graphics |
| Interfaces | HDMI, DisplayPort |
Ethernet | |
| Controller Type | Intel i226V, Intel i219-LM |
| Total Ethernet | 4 |
| 10/100/1000 Mbit/s | 1 |
| 2,5 Gbit/s | 3 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 2 |
| RS-232/422/485 | 4 |
| USB Total | 8 |
| USB 2.0 | 6 |
| USB v3.x | 2 |
Audio | |
| Audio Controller | Realtek ALC897 |
Drive interfaces | |
| SATA 3 | 1 |
| M.2 | 1 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 4 |
| M.2 | 3 |
| M.2 Form Factor | 2242 M, 3052 B, 2230 E |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Hardware |
Connectors | |

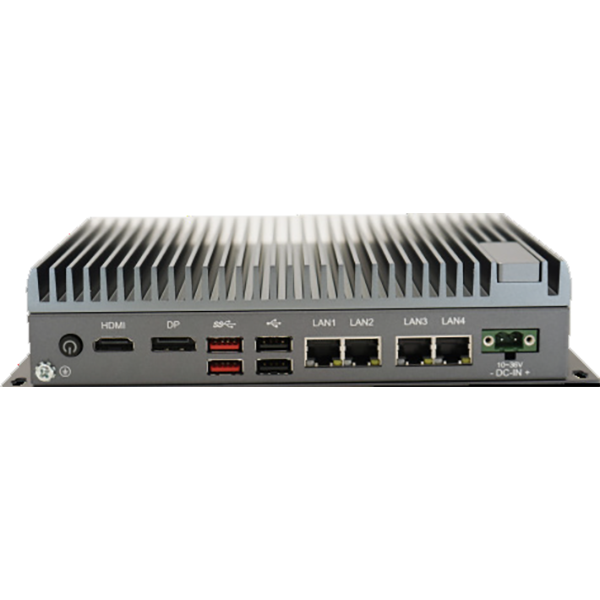

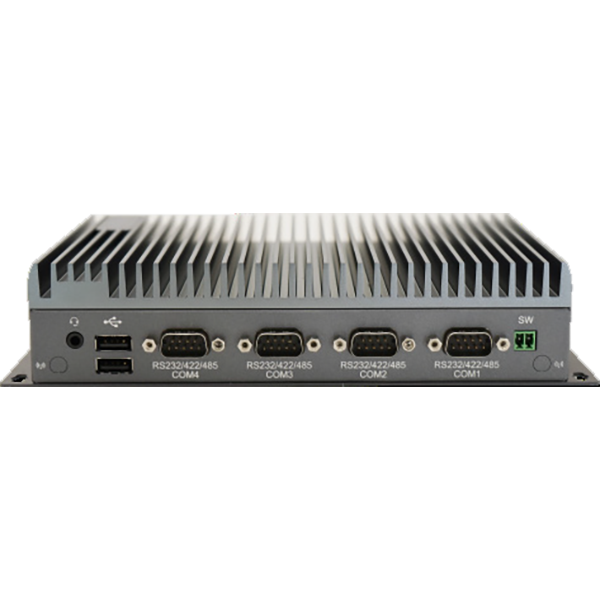

| Connectors | 4xDB9, HDMI, Display Port, 4xRJ45 Ethernet, 6xUSB, Audio (in/out/Mic), DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...36 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10, Ubuntu 20.04, Windows 11 |
Dimensions and weight | |
| Width | 224 mm |
| Height | 140 mm |
| Depth | 46.2 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Humidity | 5-95% |
| Vibration | 5~500Hz. 2Grms. operation |
| Shock | Operation: 10G@11ms; Non-operation: 30G@11ms |
Standards and Certifications | |
| Certifications | CE/FCC |
