Construction |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Wall, Desktop |
| Type | Fanless |
CPU |
| СPU Generation/Family | Alder Lake, Raptor Lake |
| Socket | LGA1700 |
| CPU Support Type | Core i3, Core i5, Core i7, Core i9, Pentium, Celeron |
Chipset |
| Chipset | Intel R680E |
Memory |
| Form-factor | DDR5 |
| Socket Type | 2xSODIMM 262-pin |
| ECC | Yes |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic |
| Graphic Controller | Integrated in CPU, Intel UHD Graphics |
| Interfaces | 3xDisplayPort, VGA |
Ethernet |
| Controller Type | Intel i226-LM, Intel i350-AM4 |
| Total Ethernet | 6 |
| 2,5 Gbit/s | 2 |
| PoE+ 10/100/1000 Mbit/s | 4 |
Interfaces |
| COM Total | 6 |
| RS-232/422/485 | 6 |
| USB Total | 9 |
| USB v3.x | 9 |
Digital Input-Output |
| Channels of DIO | 16 |
Drive interfaces |
| SATA 3 | 2 |
| RAID Levels | 0, 1, 5, 10 |
| M.2 | 2 |
Storage Cage |
| Number Of Cage External | 2 |
| 2.5" Cage Intenal | 2 |
Extension Slots |
| Total | 5 |
| M.2 | 4 |
| M.2 Form Factor | 2280 M, 2230 E, 3042 B, 3052 B |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 2, Mini-SIM |
Antenna characteristics |
| Cellular interfaces | 4G (Optional) |
LED / Controls |
| LED | Power LED |
| Controls | On/Off |
Connectors |

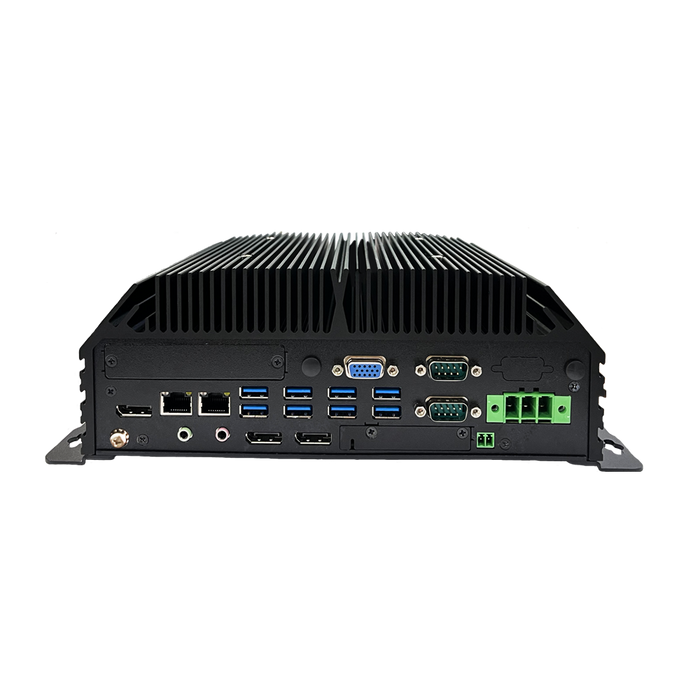

| Connectors | 6xDB9, DB15 VGA, 2xRJ45 Ethernet, 9xUSB, Mic In, Line Out, DC input (terminal block), DIO (terminal block), 3xDisplay Port |
System Power Input |
| Input Voltage DC | 9...48 V |
Power Supply |
| Supported Types of Power Supply | External power adapter AC/DC |
Software |
| Operating System Compatibility | Windows IoT Enterprise 10, Windows 11, Linux OS |
Dimensions and weight |
| Width | 240 mm |
| Height | 200 mm |
| Depth | 0 mm |
Operating Conditions |
| Operating Temperature | -40...70 °C |
| Humidity | 10-90% |
| Vibration | 5Grms. 5 - 500 Hz. 0.5 hr/axis |
| Shock | 50G. half sine. 11ms |
Standards and Certifications |
| Certifications | CE, FCC Class A |
