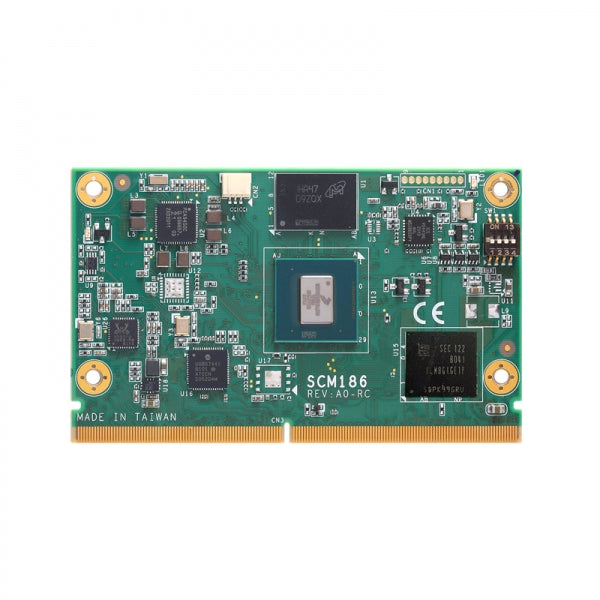

SCM186-4R8E-C

Name: SCM186-4R8E-C
Brand: AXIOMTEK
SKU: 09662400
Availability: InStock

AXIOMTEK

Ціна за запитом

SMARC 2.0, NXP i.MX 8M Plus SoC Quad A53, 4GB RAM, HDMI, LVDS, GbE LAN, 2xUSB 3.0, 2xUSB 2.0, 1xUSB 2.0 OTG, 3xI2C, 1xI2S, 3.3-5.25VDC

Специфікація

Specification

System Architecture
Form Factor	Smarc
Construction
Type	Fanless
CPU
Processor Installed	NXP i.MX 8M Plus
Max CPU frequency	1.8 GHz
Memory
Form-factor	DDR4
Default on Board Memory	4 GB
Assembly	Fixed on Board
Graphic
Graphic Controller	Vivante GC7000UL, Vivante GC520L
Interfaces	LVDS, HDMI
Ethernet
10/100/1000 Mbit/s	1
Interfaces
COM Total	2
USB Total	6
USB 2.0	4
USB v3.x	2
Digital Input-Output
Channels of DIO	12
Installed drive
Storage Form-Factor	eMMC
1st Storage Capacity	8 GB
Extension Slots
PCI Express x1	1
Software
Operating System Compatibility	Linux OS
Dimensions and weight
Width	82 mm
Length	50 mm
Operating Conditions
Operating Temperature	0...60 °C
Standards and Certifications
Certifications	CE

Документація
