SCM7B22

Name: SCM7B22
Brand: Dataforth
SKU: 01320600
Availability: InStock

Dataforth

Ціна за запитом

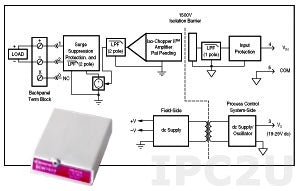

Isolated Bipolar Voltage Output Module, Input -10...+10 V, Output -10...+10 V

Специфікація

Specification

Analog Input
Total channels of analog input	1
Voltage range	+/-10 V
Analog Output
Channels of analog input	1
Voltage range	+/-10 V
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Built-in
Connectors
Connectors	Pin Header
System Power Input
Input Voltage DC	19...29 V
Dimensions and weight
Width	15.4 mm
Depth	54.1 mm
Height	43.3 mm
Operating Conditions
Operating Temperature	-40...85 °C
Standards and Certifications
Certifications	CE
EMI	EN 61000-6-4
EMS	IEEE C37.90.1, EN 61000-6-2
Oil And Gas	Class I Div.2 Groups A, B, C, D

Документація
