SCM7B39-04

Name: SCM7B39-04
Brand: Dataforth
SKU: 01333300
Availability: InStock

Dataforth

Ціна за запитом

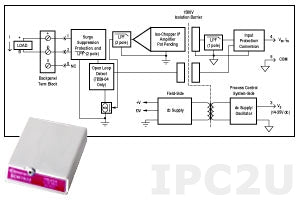

Isolated Current Output Module, Input 4...20 mA, Output 4...20 mA

Специфікація

Specification

Analog Input
Total channels of analog input	1
Current range	4...20 mA
Analog Output
Channels of analog input	1
Current range	4...20 mA
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Built-in
Connectors
Connectors	Pin Header
System Power Input
Input Voltage DC	18...35 V
Dimensions and weight
Width	15.4 mm
Depth	54.1 mm
Height	43.3 mm
Operating Conditions
Operating Temperature	-40...85 °C
Standards and Certifications
Certifications	CE
EMI	EN 61000-6-4
EMS	IEEE C37.90.1, EN 61000-6-2
Oil And Gas	Class I Div.2 Groups A, B, C, D
