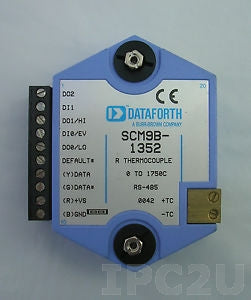

SCM9B-1532

Name: SCM9B-1532
Brand: Dataforth
SKU: 06109000
Availability: InStock

Dataforth

Ціна за запитом

DAQ Module, Excitation Voltage +5 V, Input -100...+100 mV, RS-485, protocol ASCII

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Built-in, Wall
Interfaces
RS-485	1
Supported Protocols
Industrial Protocols	Dataforth slave
Analog Input
Total channels of analog input	1
Load Cell	+/-100 mV
Digital Output
Total channels of digital output	1
Type	Open collector
Output voltage	3.5~30 V
Max. load current	30 mA
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	91.4 mm
Depth	27.9 mm
Height	62.2 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
Certifications	CE
