SCTP20-01

Name: SCTP20-01
Brand: Dataforth
SKU: 06079500
Availability: InStock

Dataforth

Ціна за запитом

Configurable Two-Wire Temperature Transmitter, Head Mount, input: RTD/thermocouple/mV, output: 4...20mA

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Built-in
Analog Input
Thermocouple	K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, B: 0...1820 °С, N: -270...+1300 °С, L: -200...+800 °С, S: -50...+1760 °С, C: 0...+2315°C, J: -210 ... +1200°C, R: -50 ... +1765°C, J: -100...+300 °С, D: 0...+2315 °С
Thermal resistance	Pt100, Ni100
Total channels of analog input	1
Analog Output
Channels of analog input	1
Current range	4...20 mA
Connectors
Connectors	Screw Terminal

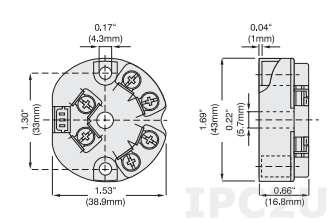

Dimensions and weight
Width	43 mm
Depth	17 mm
Height	43 mm
Operating Conditions
Operating Temperature	-25...80 °C
Standards and Certifications
Certifications	CE
