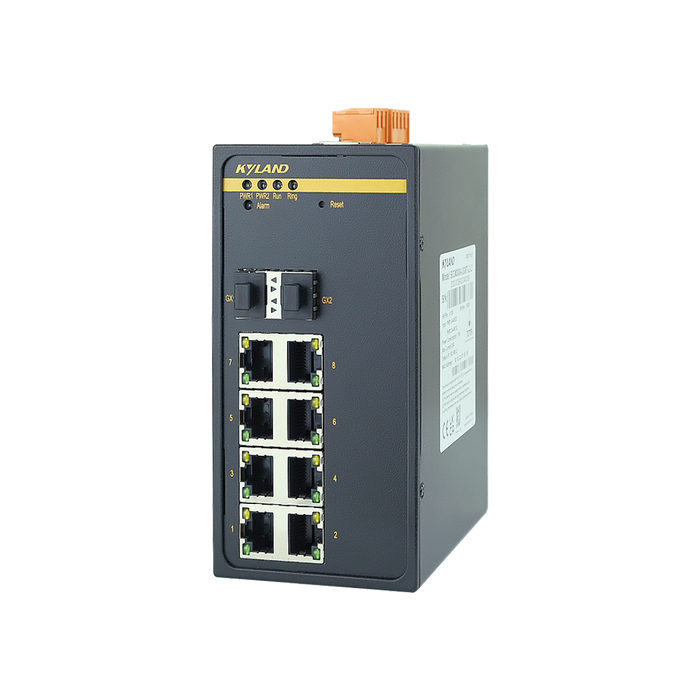

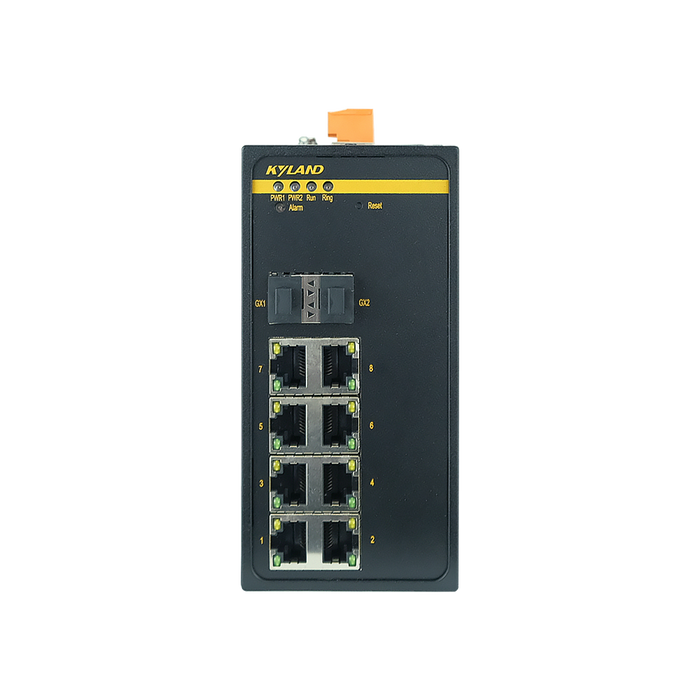

Managed DIN-Rail Switch, 2x100Base-X SFP, 8x10/100Base-T(X) RJ45 ports, 12-24VDC(9-36VDC), redundant power inputs, -40...+75C



Total Ethernet10
10/100 Mbit/s10
Type 10/100 Mbit/s8xRJ-45
SFP Fast Ethernet 100 Mbit/s2

Switch Properties

Switch LevelLayer 2
MAC Table Size8000
Packet Buffer Size4 kBit
Jumbo Frame Size9.6 kB
Max. Number of VLANs4000
Priority Queues8

Supported Protocols

Industrial ProtocolsEtherNet/IP, Modbus TCP
Protocol Layer 3Static Routing
Managment ProtocolsVLAN, PVLAN, GVRP, IGMP, LACP, GMRP, Multicast, QoS
Reservation protocolsERPS, MSTP, RSTP, STP, DT Ring, DT Ring+, DRP/DHP, DT VLAN
Security ProtocolsHTTPS, RADIUS, SSL, TACACS+, IEEE 802.1X Network Access Control, ACL
IEEE Standardieee_802.3i, ieee_802.3u, ieee_802.3ab, ieee_802.3z, ieee_802.3ad, ieee_802.3x, ieee_802.1p, ieee_802.1q, ieee_802.1w, ieee_802.1s

LED / Controls

Setup of Operation ModeTelnet, Command Line Interface (CLI), Web-interface

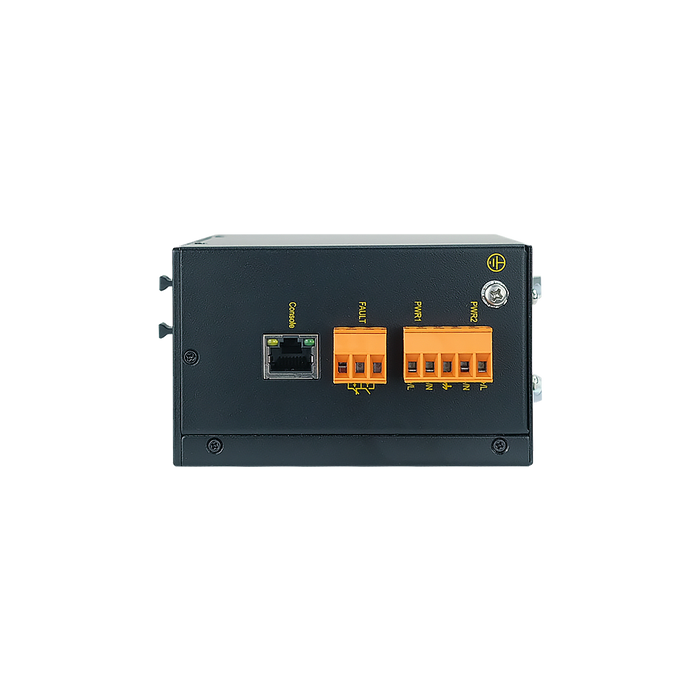

ConnectorsConsole Port RS-232 (RJ-45)

System Power Input

Redundant power inputYes
Power Supply Reserve input Voltage DC9...36 V


Construction ChassisMetal Chassis
Mounting ConfigurationDIN-Rail mount, Panel
Protection Level of ChassisIP40

Dimensions and weight

Width66 mm
Depth107.5 mm
Height135 mm

Operating Conditions

Operating Temperature-40...75 °C

Standards and Certifications

CertificationsCE, FCC
EMIfcc_cfr47_part_15, en55032-cispr22_class_a
EMSIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, EN 61000-6-2, EN 61000-6-4, EN 55032, IEC 61000-4-6
Explosion safetyIECEx, Class I Div 2, ATEX Zone 2
FreefallIEC 60068-2-32
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
