Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
CPU | |
| Processor Installed | Intel Celeron |
Chipset | |
| Chipset | Intel Q170 |
Memory | |
| Default on Board Memory | 4 GB |
| Maximum Memory | 32 GB |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 6 |
Extension Slots | |
| PCI Express x8 | 1 |
| PCI Express x4 | 2 |
| PCI | 1 |
Connectors | |

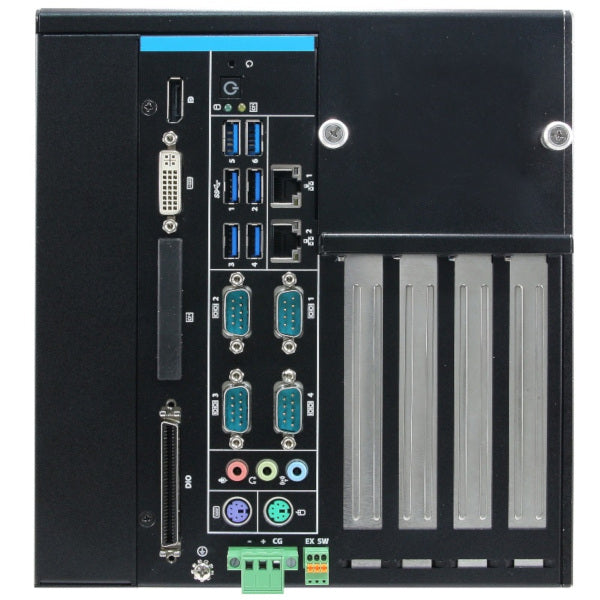

| Connectors | 4xDB9, DVI-I, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port |
Software | |
| Operating System Compatibility | Linux OS, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 92 mm |
| Height | 217.8 mm |
| Depth | 220 mm |
Operating Conditions | |
| Vibration | IEC 60068-2-64 Test:Fh 1.5Grms. X. Y. and Z axis. 30 minutes per axis |
| Shock | Bump test. 10Grms/11ms |
Standards and Certifications | |
| Certifications | CE, FCC |
