SoftPLC-Starter-Kit

Ціна за запитом

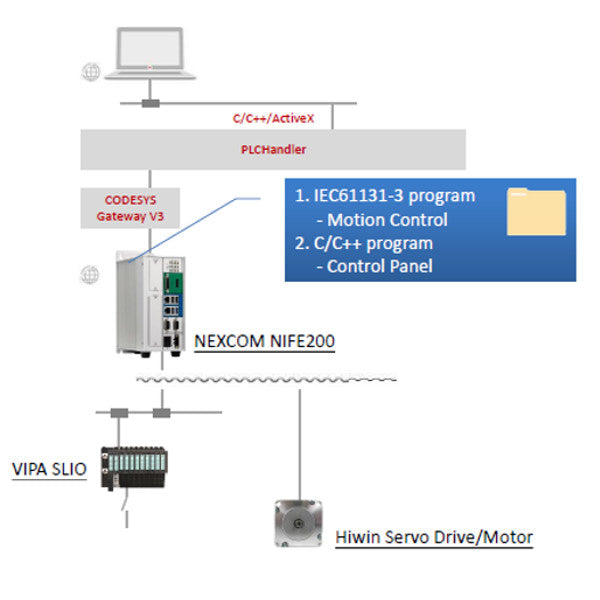

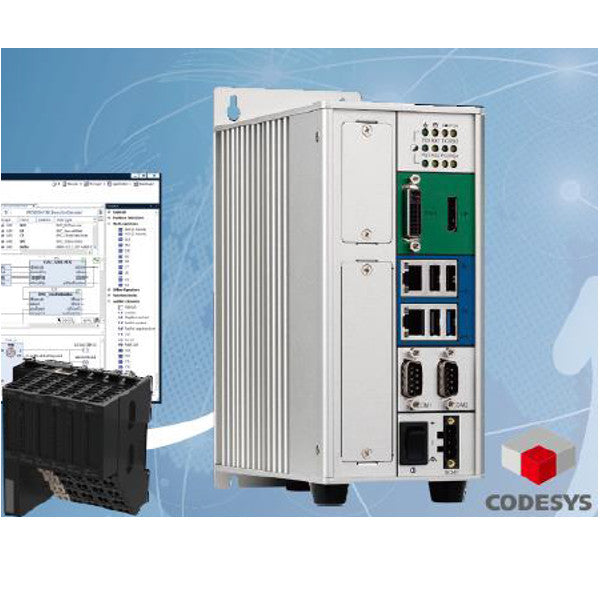

Tutorial package with ready to use Application and 1x NIFE200 Controller, CODESYS Software, Windows Embedded Standard 7, 1x PROFINET Coupler, 1x 8ch DI module, 1x 8ch DO module, 1x PROFINET cable, 1x Power supply, Quick Start Guide

Specification

Construction

Construction ChassisMetal Chassis with Aluminium Heatsink

CPU

Processor InstalledIntel Celeron J1900
Max CPU frequency2.42 GHz

Drive interfaces

SD Slots1
CFast Slots1

Software

Operating System InstalledWindows Embedded Standard 7
Programming MethodC/C++
Development SoftwareCoDeSys

Digital Input

Total channels of digital input8

Digital Output

Total channels of digital output8

Ethernet

10/100/1000 Mbit/s2

Interfaces

COM Total2
RS-232/422/4852
USB Total4

Supported Protocols

Industrial ProtocolsPROFINET master, PROFINET

Connectors

Connectors2xDB9, HDMI, 2xRJ45, 4xUSB, DC Input, Display Port

Dimensions and weight

Width151 mm
Depth157 mm
Height230 mm

System Power Input

Input Voltage DC24...24 V

Operating Conditions

Operating Temperature-5...55 °C

Standards and Certifications

CertificationsCE, FCC Class A
Vibration And ShockIEC 60068-2-6, IEC 60068-2-64
