Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Panel, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP66 |
| Type | Fanless |

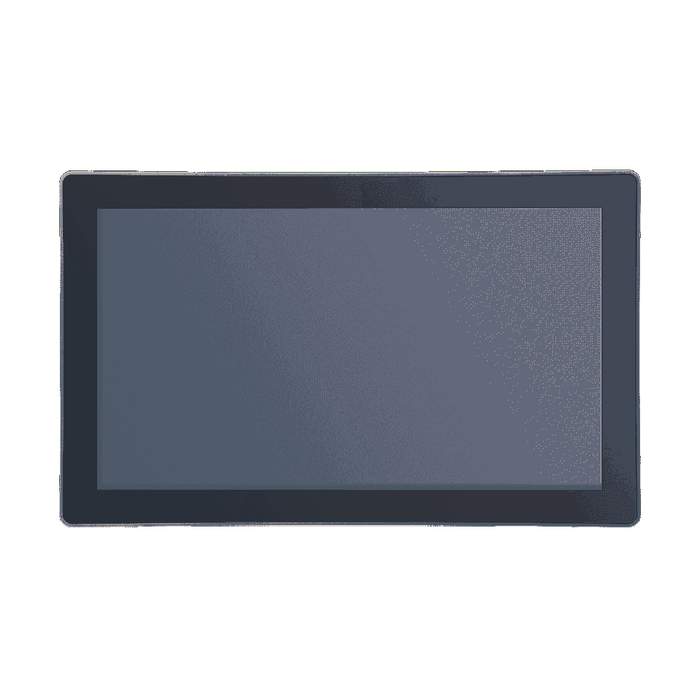

Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | HDMI |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Tiger Lake |
| Processor Installed | Intel Core i5-1135G7 |
| Socket | FCBGA 1449 |
| Max CPU frequency | 4.2 GHz |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| ECC | No |
| Default on Board Memory | 4 GB |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i226V |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 1 |
| RS-232/485 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 5 |
| USB 2.0 | 3 |
| USB v3.x | 2 |
Audio | |
| Audio Controller | Realtek ALC888S |
Drive interfaces | |
| SATA 3 | 1 |
| M.2 | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| Drive Interface | SATA |
| 1st Storage Capacity | 128 GB |
Extension Slots | |
| Total | 3 |
| M.2 | 2 |
| M.2 Form Factor | 2242 M, 2230 E |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 1 |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

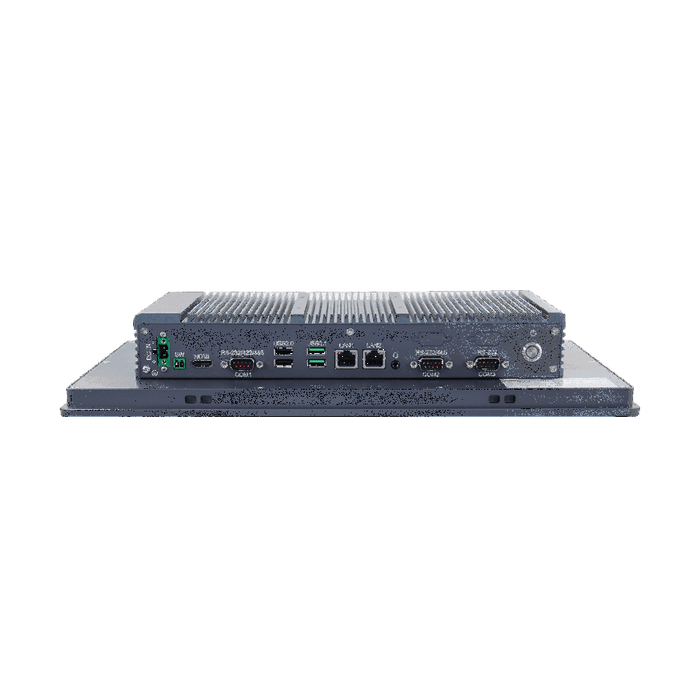

| Connectors | 3xDB9, 4xUSB, 2xRJ45 Ethernet, HDMI, Mic In, Line Out, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...36 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10, Linux OS |
Dimensions and weight | |
| Width | 528.2 mm |
| Height | 321.9 mm |
| Depth | 66 mm |
Operating Conditions | |
| Operating Temperature | -10...50 °C |
| Humidity | 5-95% |
| Vibration | Random Vibration: 5~500Hz. 2Grms operation; Sine Vibration: 5~500Hz. 2G Non-operation |
| Shock | 10g 11ms operation. 30g 11ms Non-operation |
Standards and Certifications | |
| Certifications | CE/FCC |
