Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Built-in, Panel, Wall, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 15.1 " |
| Maximum resolution | 1024x768 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 450 Cd/m2 |
| Contrast Ratio | 800~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Atom E3845 |
| Socket | CPU onboard |
| Max CPU frequency | 1.91 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel Gen7 graphic engine |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232/422/485 | 6 |
| USB Total | 5 |
| USB 2.0 | 1 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | 1 |
LED / Controls | |
| Controls | On/Off, Control Buttons |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

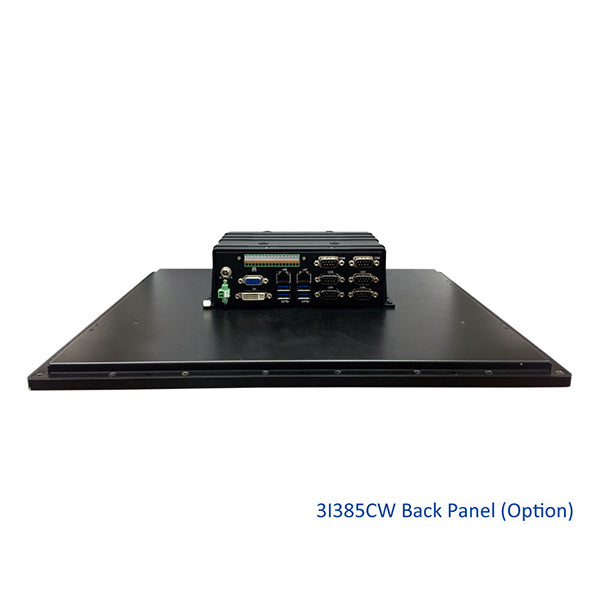

| Connectors | 4xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, DC Input, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 9...36 V |
Dimensions and weight | |
| Width | 404.1 mm |
| Height | 335 mm |
| Depth | 68.7 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
