Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Core i7-6700TE |
| Socket | CPU onboard |
| Max CPU frequency | 3.4 GHz |
Chipset | |
| Chipset | Intel Q170 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 4 GB |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | 802.11b/g/n |
Interfaces | |
| COM Total | 6 |
| RS-232 | 4 |
| RS-232/422/485 | 2 |
| USB Total | 8 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| RAID Levels | 1 |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage Intenal | 2 |
Extension Slots | |
| Total | 7 |
| PCI Express x16 | 2 |
| Mini-PCIe/Mini Card | 3 |
| PCI | 2 |
Connectors | |

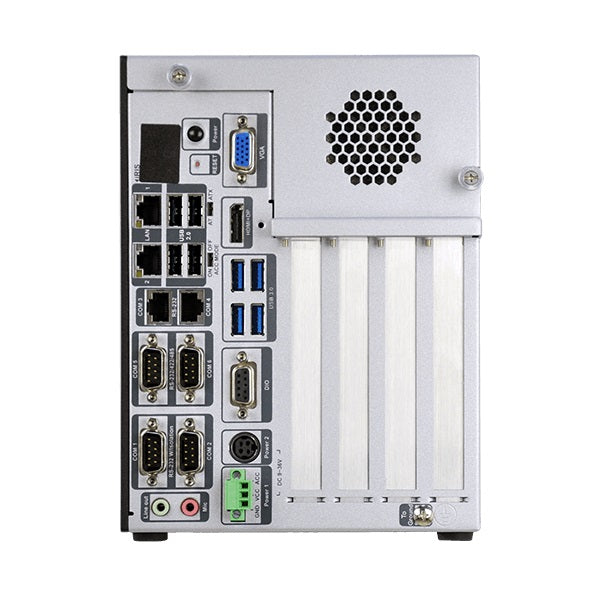

| Connectors | 4xDB9, DB15 VGA, 2xRJ45, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DB9 DIO, 4-pin DC input, HDMI/DP |
System Power Input | |
| Input Voltage DC | 9...36 V |
| Power Consumption | 70 W |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows Embedded Standard 7, Windows Embedded Standard 8, Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 154.8 mm |
| Height | 255.2 mm |
| Depth | 205 mm |
Operating Conditions | |
| Operating Temperature | -20...45 °C |
| Shock | 5G. 11ms |
Standards and Certifications | |
| Certifications | CE/FCC |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration |
