Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Built-in, Desktop, Wall, DIN-Rail mount |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Kaby Lake |
| Processor Installed | Intel Core i5-7300U |
| Socket | CPU onboard |
| Max CPU frequency | 3.5 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 4 |
| 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 3 |
| RS-232/422/485 | 3 |
| USB Total | 4 |
| USB v3.x | 4 |
Industrial Interfaces | |
| CAN Port | 1 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage External | 2 |
Extension Slots | |
| Total | 3 |
| Mini-PCIe/Mini Card | 3 |
| SIM Card slots | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

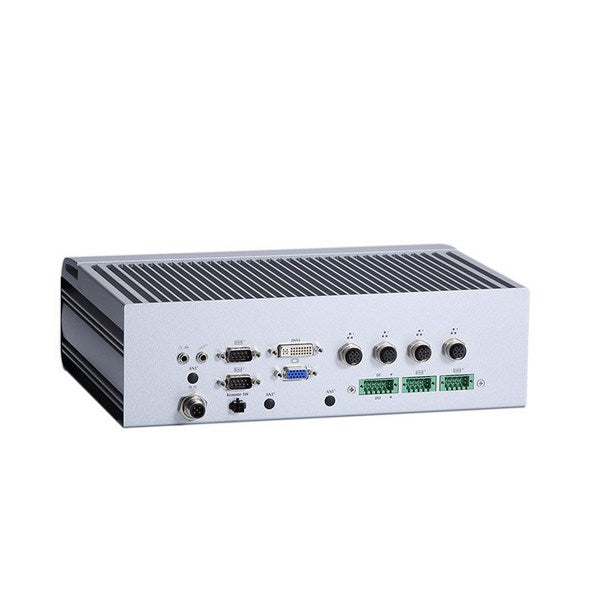

| Connectors | 2xDB9, DVI-D, DB15 VGA, 4xUSB, Mic In, Line Out, 4xM12, 3x10-pin COM (terminal block), CFast slot |
System Power Input | |
| Input Voltage DC | 14...32 V |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 288 mm |
| Height | 85.7 mm |
| Depth | 211 mm |
Operating Conditions | |
| Operating Temperature | -40...70 °C |
| Vibration | 5 Grms |
Standards and Certifications | |
| Certifications | CE, FCC |
| Explosion safety | EN 45545 |
| Marine grade | DNV, IEC 60945 4th |
| Rolling Stock | EN 50155, EN 50121-3-2 |
| Automotive | ISO 7637 |
| Vehicle | E-Mark |
