Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Built-in, Desktop, Wall, DIN-Rail mount |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Bay Trail |
| Processor Installed | Intel Atom E3845 |
| Max CPU frequency | 1.91 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| ECC | No |
| Default on Board Memory | 4 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Integrated with Chipset |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB 2.0 | 2 |
Digital Input-Output | |
| Channels of DIO | 8 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

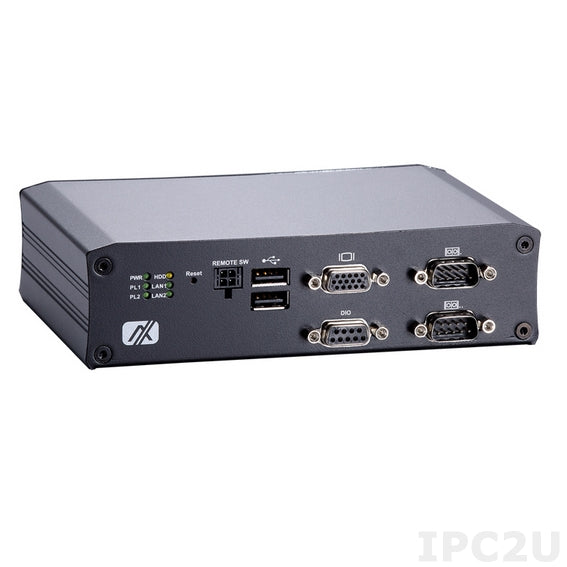

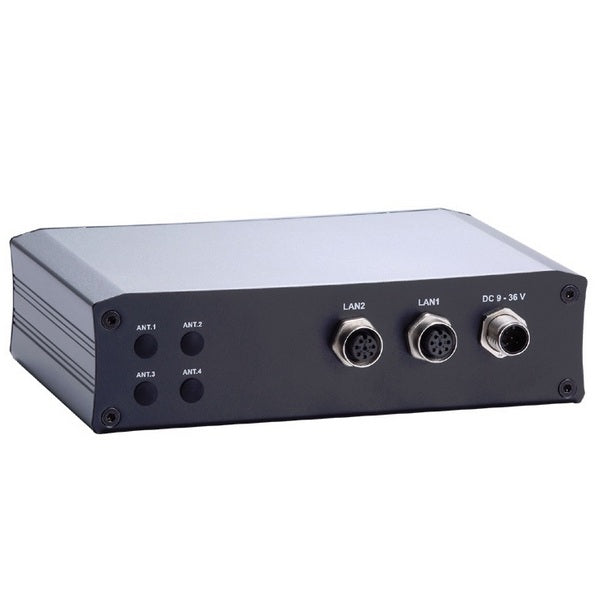

| Connectors | 2xDB9, DB15 VGA, 2xUSB, 2xM12, DB9 DIO, M12 DC-in |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 163.8 mm |
| Height | 44 mm |
| Depth | 108 mm |
Operating Conditions | |
| Operating Temperature | -40...70 °C |
| Vibration | 3 Grms w/ SSD (5-500Hz. X. Y. Z direction; random) 0.8 Grms w/ HDD (5-500Hz. X. Y. Z direction; random) |
Standards and Certifications | |
| Certifications | CE, IEC 60945 |
| EMS | EN 50121 |
| Rolling Stock | EN 50155 |
| Vehicle | ISO 7637-2, E-Mark |
