Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Panel, Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65, IP66 |
| Material Front Side (Panel) | Epoxyd glass resin |
Display | |
| Display Type | LCD |
| Diagonal | 12.1 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 700~1 |
| Input Interface | HDMI, VGA, DVI-I |
Touch Screen | |
| Touch Screen Type | Capacitive |
| Interface | USB |
LED / Controls | |
| LED | 1xOn/Off LED |
| Controls | On/Off |
Connectors | |

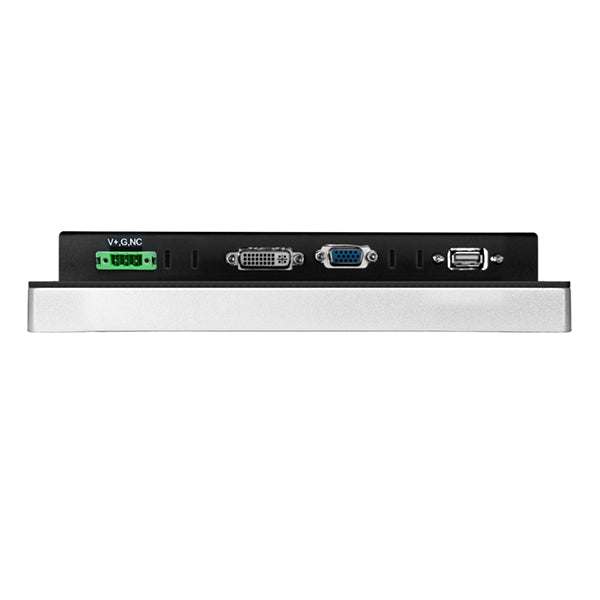

| Connectors | DVI-I, DB15 VGA, HDMI, DC input (terminal block), USB type A |
System Power Input | |
| Input Voltage DC | 9...36 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Operating Conditions | |
| Operating Temperature | -20...70 °C |
Dimensions and weight | |
| Width | 294 mm |
| Height | 224.5 mm |
| Depth | 54 mm |
Standards and Certifications | |
| Certifications | CE, FCC |
