Specification
Ethernet | |
| 10/100 Mbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-485 | 2 |
| Isolation of COM Ports | 2.5 kV (RS-485) |
Connectors | |

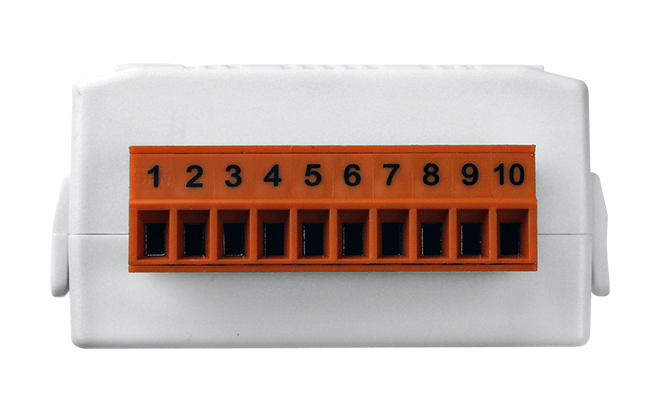

| Connectors | Screw Terminal |
Cables | |
| Included Cables | Кабель питания CA-002 |
System Power Input | |
| Input Voltage DC | 12...48 V |
| Power over Ethernet (PoE) | PoE, IEEE 802.3af |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Dimensions and weight | |
| Width | 52 mm |
| Depth | 27 mm |
| Height | 95 mm |
