Specification
Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Digital Input | |
| Total channels of digital input | 8 |
| Type | Dry contact, Wet contact |
| Sink/Source | Dry: Source, Wet: Sink/Source |
| Counter capacity | 16 Bit |
| Max frequency | 0.1 kHz |
| Counter | 100Hz, 16 bit |
Interfaces | |
| RS-485 | 1 |
Supported Protocols | |
| Industrial Protocols | Modbus RTU slave, Modbus ASCII slave, DCON slave |
Connectors | |

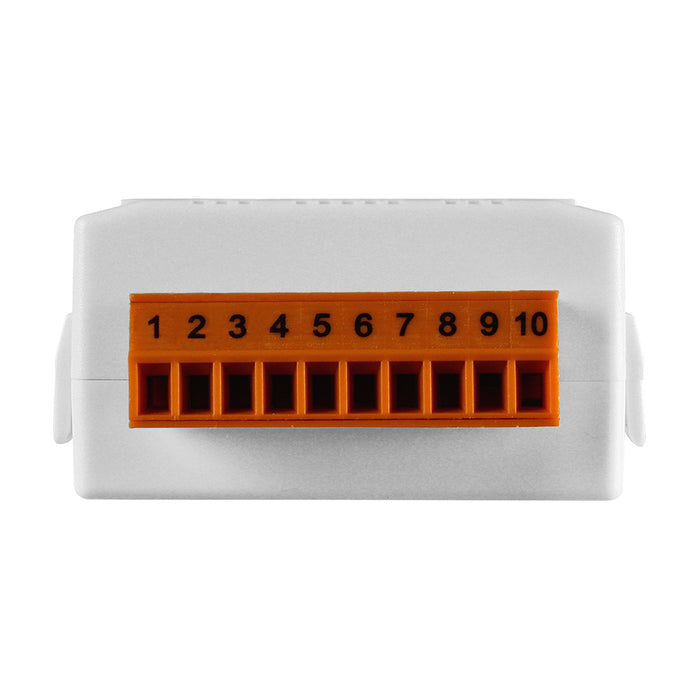

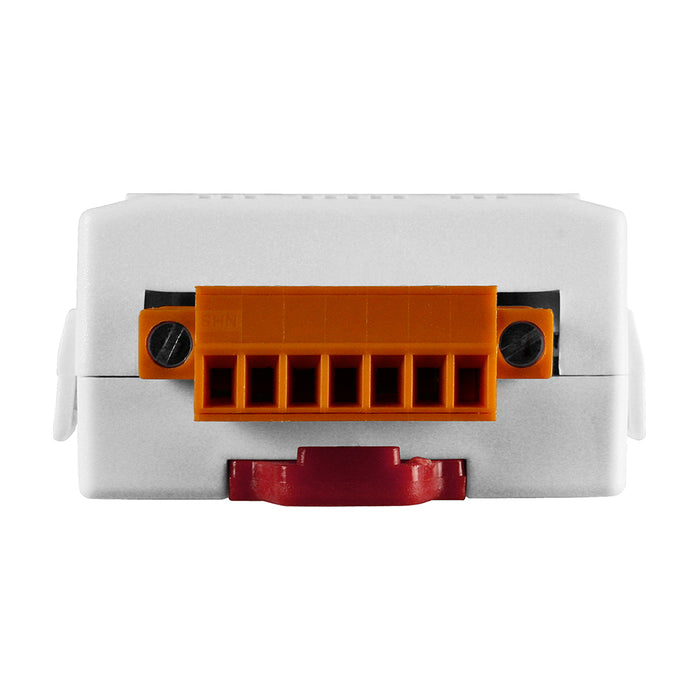

| Connectors | Screw Terminal |
Additional Functions | |
| Watchdog timer type | Hardware, Software |
System Power Input | |
| Input Voltage DC | 10...30 V |
Dimensions and weight | |
| Width | 52 mm |
| Depth | 27 mm |
| Height | 98 mm |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
Standards and Certifications | |
| EMS | IEC 61000-4-2, IEC 61000-4-4 |
