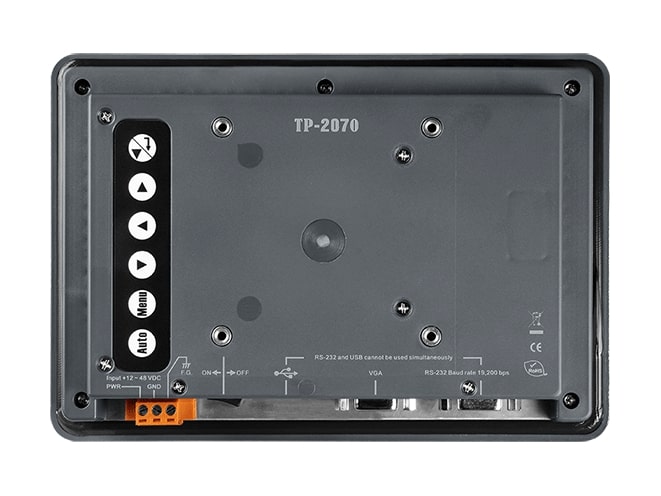

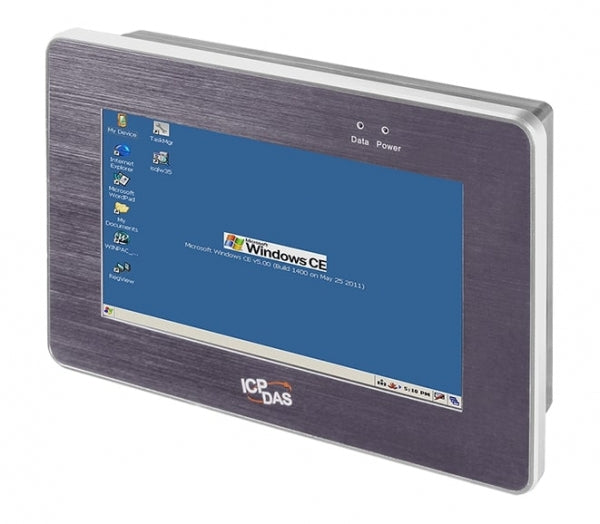

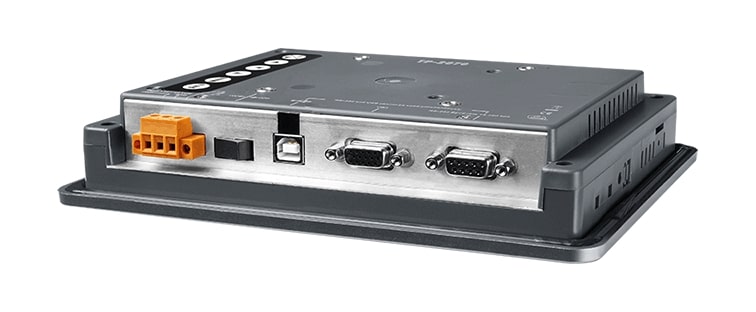

TP-2070/NP

TP-2070/NP

ICP DAS
Ціна за запитом
7" TFT LCD Resistive Touch Panel Monitor, 800 x 480, VGA, RS-232 / USB Touch Screen Interface, w/o Power supply, VGA cable, RS-232 cable, USB cable, Mounting clamps and screws

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationPanel, Wall VESA 75
Protection Level of Front Side (Panel)IP65

Display

Display TypeLCD TFT
Diagonal7 "
Maximum resolution800x480 Dots
Brightness400 Cd/m2
Contrast Ratio500~1
Input InterfaceVGA

Touch Screen

Touch Screen TypeResistive
InterfaceRS-232, USB

System Power Input

Input Voltage DC12...48 V
Power Consumption5 W

Operating Conditions

Operating Temperature-20...70 °C

Dimensions and weight

Width213 mm
Height148 mm
Depth44 mm

Files

Documentation

📄 Datasheet TP-2070/NP

📄 User Manual TP-2070/NP
