TP-6150/NP

TP-6150/NP

ICP DAS
Ціна за запитом

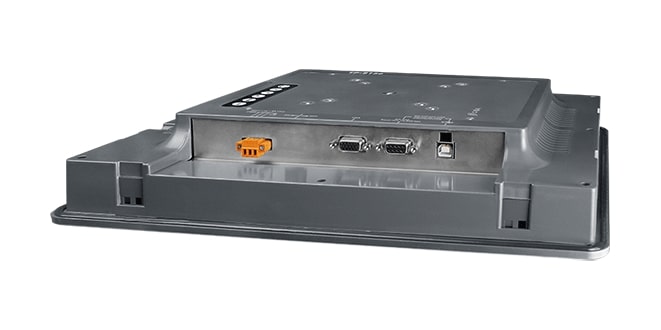

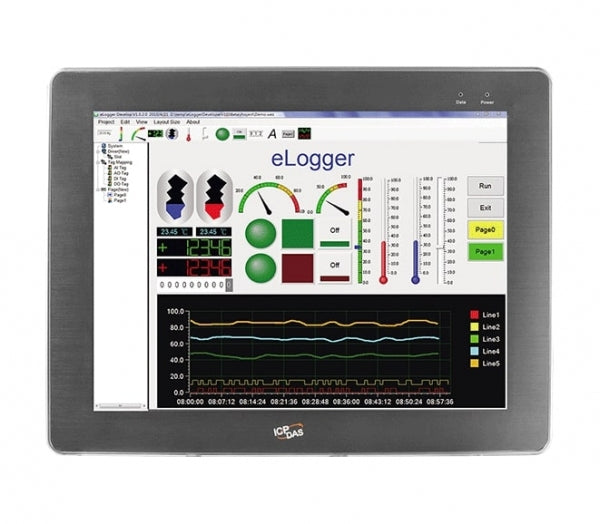

15" TFT LCD Resistive Touch Panel Monitor, 1024x768, VGA, RS-232 / USB Touch Screen Interface, w/o Power supply, VGA cable, RS-232 cable, USB cable, Mounting clamps and screws

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationPanel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)IP65

Display

Display TypeLCD TFT
Diagonal15 "
Maximum resolution1024x768 Dots
Brightness400 Cd/m2
Contrast Ratio500~1
Input InterfaceVGA

Touch Screen

Touch Screen TypeResistive
InterfaceRS-232, USB

System Power Input

Input Voltage DC12...48 V
Power Consumption14.4 W

Operating Conditions

Operating Temperature-20...70 °C

Dimensions and weight

Width381 mm
Height305 mm
Depth65 mm

Files

Documentation

📄 Datasheet TP-6150/NP

📄 User Manual TP-6150/NP
