Construction | |
| Construction Chassis | ABS plastic chassis |
| Mounting Configuration | Desktop, Panel, Wall |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 17 " |
| Maximum resolution | 1280x1024 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 800~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Core i7-4650U |
| Max CPU frequency | 3.3 GHz |
Chipset | |
| Chipset | Intel Lynx Point-LP |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 4 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB v3.x | 2 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| PCI Express x1 | 1 |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

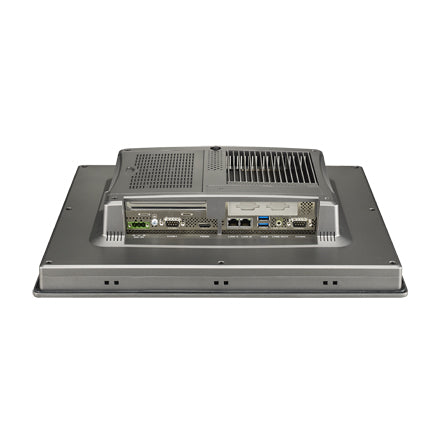

| Connectors | 2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC input (terminal block), CFast slot |
System Power Input | |
| Input Voltage DC | 19...28 V |
| Power Consumption | 60 W |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows IoT Enterprise 10, Windows Embedded 8.1 Industry |
Dimensions and weight | |
| Width | 414 mm |
| Height | 347.5 mm |
| Depth | 84 mm |
Operating Conditions | |
| Operating Temperature | 0...55 °C |
| Vibration | 1 Grms (5 ~ 500 Hz) |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Safety | CCC, UL, BSMI |
