Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 100, Arm |
| Protection Level of Front Side (Panel) | IP66 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 17 " |
| Maximum resolution | 1024x768 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 300 Cd/m2 |
| Contrast Ratio | 800~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| СPU Generation/Family | Whiskey Lake |
| Processor Installed | Intel Core i5-8365UE |
| Max CPU frequency | 4.1 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 8 GB |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 5 |
| USB 2.0 | 1 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |

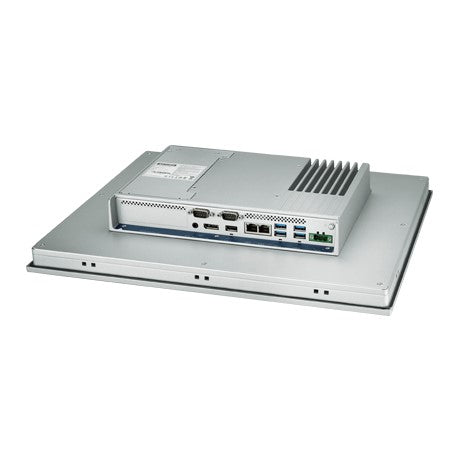

| Connectors | 2xDB9, 2xRJ45 Ethernet, 5xUSB, Mic In, Line Out, Display Port, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 24...24 V |
| Power Consumption | 45.48 W |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 410.4 mm |
| Height | 343.4 mm |
| Depth | 68 mm |
Operating Conditions | |
| Operating Temperature | -10...55 °C |
| Vibration | With SSD: 1 Grms (5 ~ 500 Hz) (Operating. random vibration) |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Safety | CCC, CB, UL |
