Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Desktop, Panel, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP66 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 17 " |
| Maximum resolution | 1280x1024 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 800~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Core i3-6100U |
| Socket | CPU onboard |
| Max CPU frequency | 2.3 GHz |
Memory | |
| Form-factor | DDR4 |
| Default on Board Memory | 8 GB |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210 10/100/1000 Mbps, Intel i219-IT |
| Total Ethernet | 3 |
| 10/100/1000 Mbit/s | 3 |
Wi-Fi | |
| Wi-Fi Standard | 802.11b/g/n |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| M.2 | 1 |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage External | 1 |
Extension Slots | |
| Total | 3 |
| Mini-PCIe/Mini Card | 3 |
LED / Controls | |
| LED | 1xOn/Off LED |
| Controls | Control Buttons |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

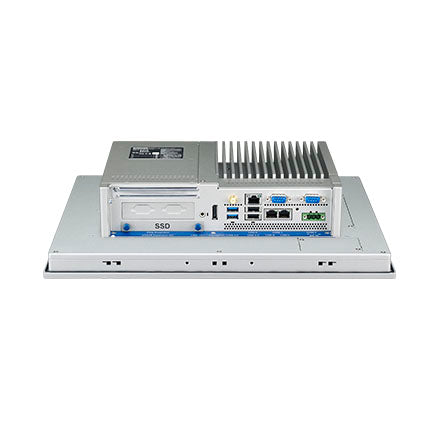

| Connectors | 2xDB9, 3xRJ45 Ethernet, 4xUSB, Line Out, DC Input, Display Port |
System Power Input | |
| Input Voltage DC | 19...29 V |
| Power Consumption | 42 W |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows 8.1, Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 410.4 mm |
| Height | 343.4 mm |
| Depth | 87.5 mm |
Operating Conditions | |
| Operating Temperature | 0...55 °C |
| Vibration | 3 Grms (5 ~ 500 Hz) |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Safety | CCC, UL, BSMI |
