Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Desktop, Panel, Wall |
| Protection Level of Front Side (Panel) | IP66 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 6.5 " |
| Maximum resolution | 640x480 Dots |
| Brightness | 550 Cd/m2 |
| Contrast Ratio | 800~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Atom E3827 |
| Max CPU frequency | 1.75 GHz |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB 2.0 | 1 |
| USB v3.x | 1 |
Drive interfaces | |

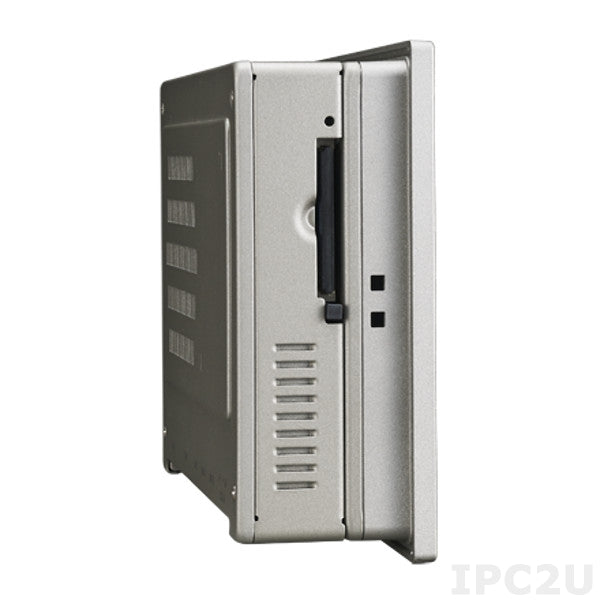

| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

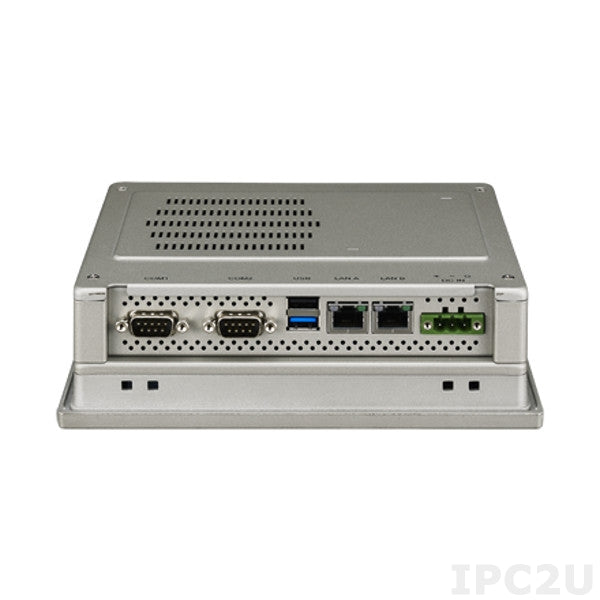

| Connectors | 2xDB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 24...24 V |
| Power Consumption | 19.2 W |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8 |
Dimensions and weight | |
| Width | 199 mm |
| Height | 152 mm |
| Depth | 58.9 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Vibration | With CFast: 2 Grms (5~500 Hz); With HDD: 1 Grms (5 ~ 500 Hz) (Operating. random vibration) |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Safety | CCC, UL, BSMI |
