TPD-430-H

Ціна за запитом

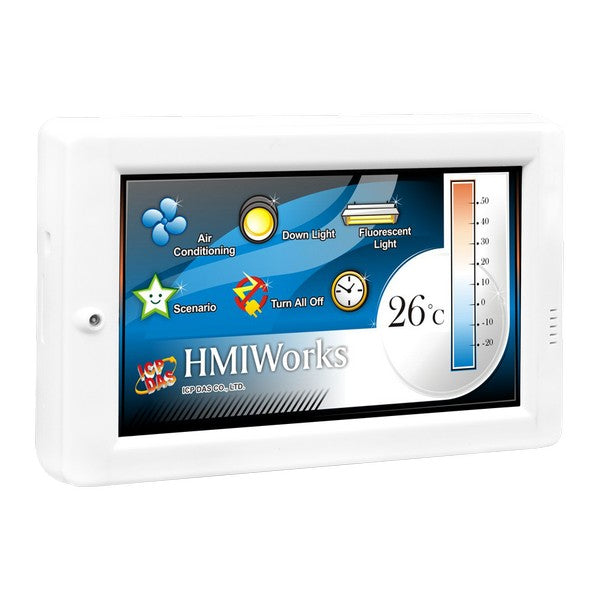

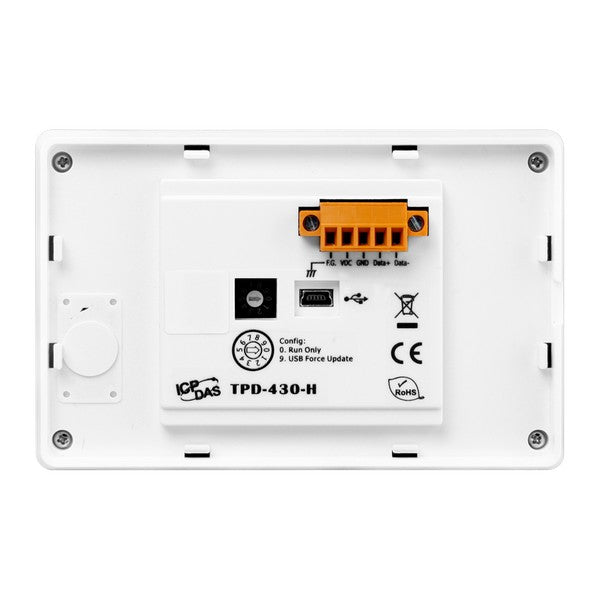

4.3" Touch HMI device with RS-485, USB, RTC, Suitable for the Outlet Box in United States (RoHS)

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationWall
Protection Level of ChassisIP40

Display

Display TypeLCD TFT
Diagonal4.3 "
Maximum resolution480x272 Dots
Brightness400 Cd/m2

Touch Screen

Touch Screen TypeResistive

Installed drive

Flash Memory Capacity16 MB

Interfaces

RS-4851

Supported Protocols

Industrial ProtocolsModbus RTU slave, Modbus RTU master, DCON master

Software

Development SoftwareHMIWorks
Programming MethodLadder Diagram, C/C++

System Power Input

Input Voltage DC12...48 V

Dimensions and weight

Width126 mm
Depth24 mm
Height82 mm

Operating Conditions

Operating Temperature-20...50 °C

Standards and Certifications

CertificationsCE/FCC

Files

Documentation

📄 Datasheet TPD-430-H
