Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Wall |
| Protection Level of Front Side (Panel) | IP40 |

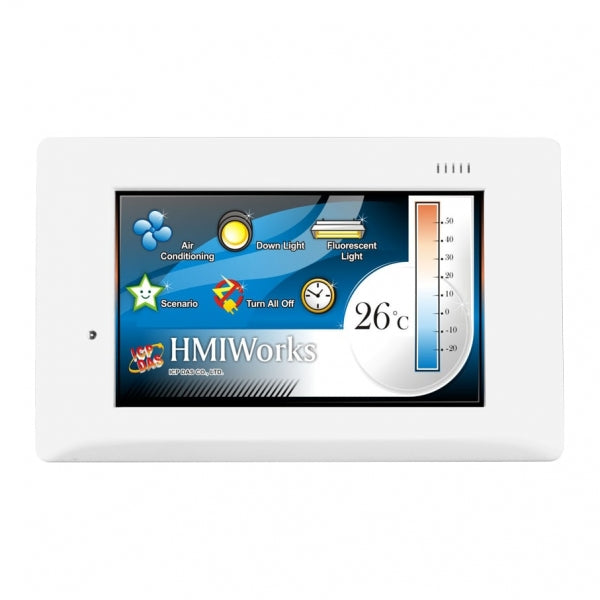

Display | |
| Display Type | LCD TFT |
| Diagonal | 4.3 " |
| Maximum resolution | 480x272 Dots |
| Brightness | 400 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
Installed drive | |
| Flash Memory Capacity | 16 MB |

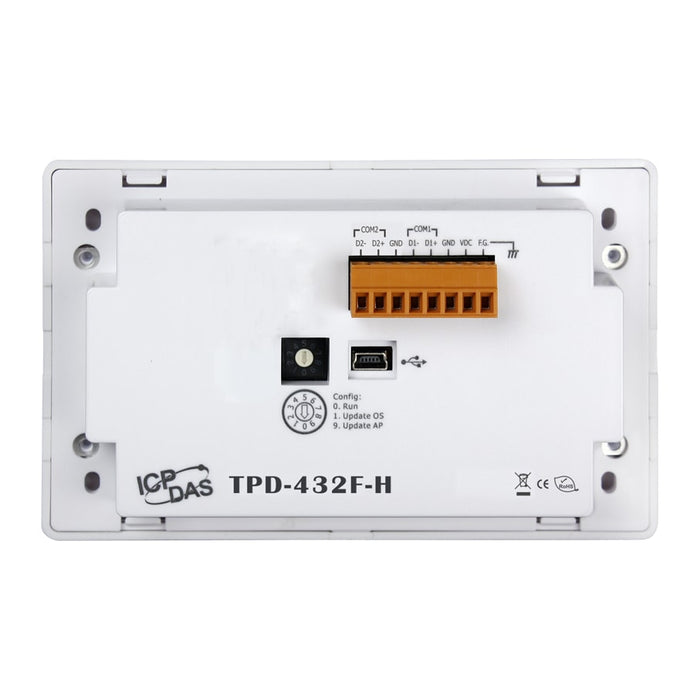

Interfaces | |
| RS-485 | 2 |
Supported Protocols | |
| Industrial Protocols | Modbus RTU slave, Modbus RTU master, DCON master |
Software | |
| Development Software | HMIWorks |
| Programming Method | Ladder Diagram, C/C++ |
System Power Input | |
| Input Voltage DC | 12...48 V |
Dimensions and weight | |
| Width | 140 mm |
| Depth | 42 mm |
| Height | 87 mm |
Operating Conditions | |
| Operating Temperature | -20...50 °C |
