TPD-433F-H

Name: TPD-433F-H
Brand: ICP DAS
SKU: 07548200
Availability: InStock

ICP DAS

Ціна за запитом

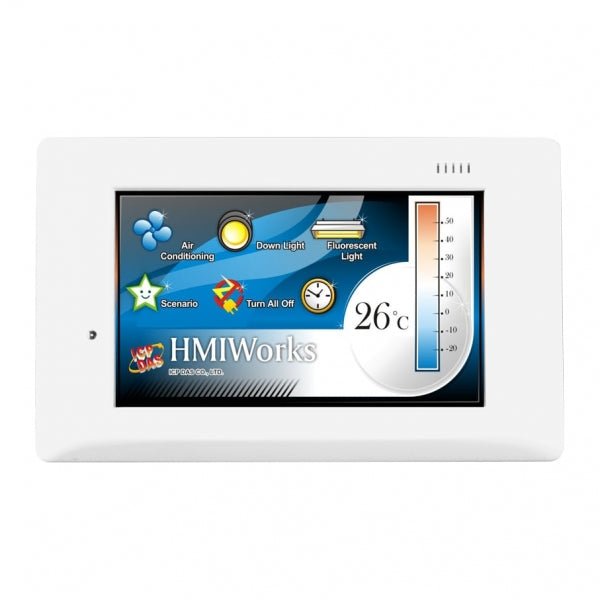

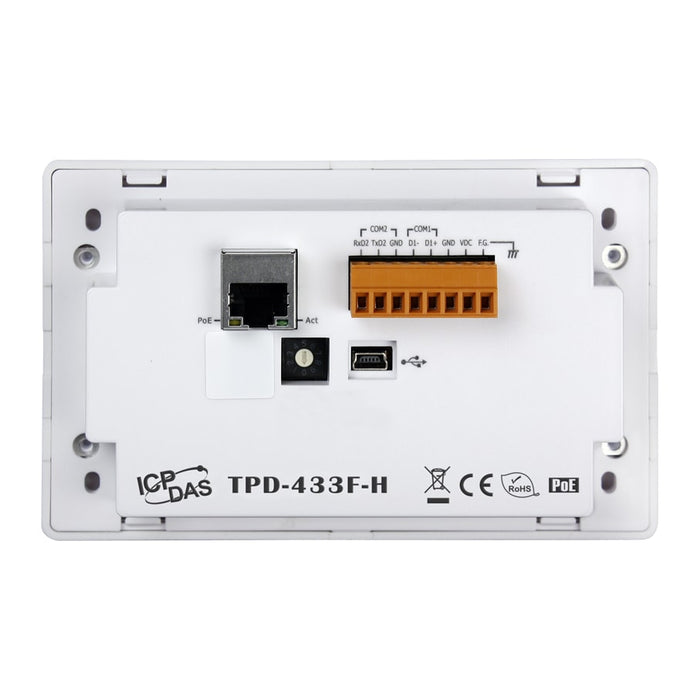

4.3" Touch HMI device with RS-232, RS-485, Ethernet (10/100 Mbps), USB, RTC, Suitable for the EWB-T43F and OB140F

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall
Protection Level of Front Side (Panel)	IP40
Display
Display Type	LCD TFT
Diagonal	4.3 "
Maximum resolution	480x272 Dots
Brightness	400 Cd/m2
Touch Screen
Touch Screen Type	Resistive
Installed drive
Flash Memory Capacity	16 MB
Ethernet
10/100 Mbit/s	1
Interfaces
RS-232	1
RS-485	1
Supported Protocols
Industrial Protocols	Modbus TCP client, Modbus RTU slave, Modbus RTU master, DCON master
Software
Development Software	HMIWorks
Programming Method	Ladder Diagram, C/C++
System Power Input
Input Voltage DC	12...48 V
Dimensions and weight
Width	140 mm
Depth	42 mm
Height	87 mm
Operating Conditions
Operating Temperature	-20...50 °C
