TPM-4100

TPM-4100

ICP DAS
Ціна за запитом

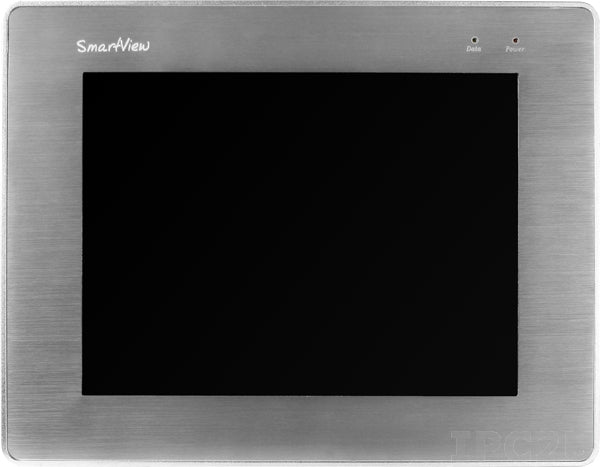

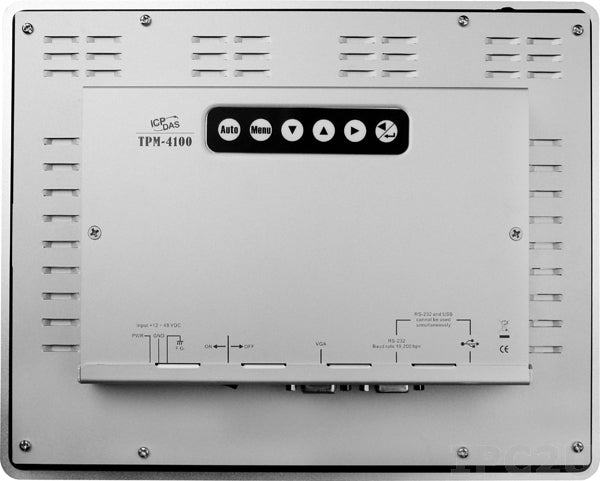

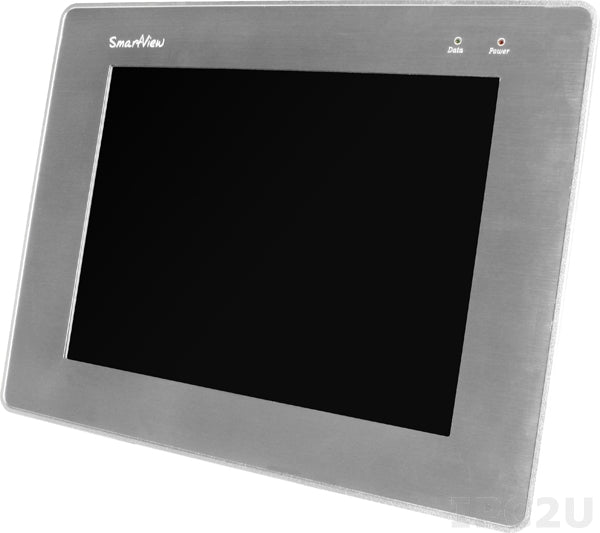

10.4" (800 x 600) resistive touch panel monitor with RS-232 or USB interface Accessories: VGA cable, RS-232 cable, USB cable, Mounting clamps and screws, Aluminum Casing

Specification

Construction

Construction ChassisAluminium Chassis
Mounting ConfigurationPanel
Protection Level of Front Side (Panel)IP65

Display

Display TypeLCD TFT
Diagonal10.4 "
Maximum resolution800x600 Dots
Brightness400 Cd/m2
Contrast Ratio500~1
Input InterfaceVGA

Touch Screen

Touch Screen TypeResistive
InterfaceRS-232, USB

System Power Input

Input Voltage DC12...48 V
Power Consumption8.5 W

Operating Conditions

Operating Temperature-20...70 °C

Dimensions and weight

Width293 mm
Height231 mm
Depth53 mm

Files

Documentation

📄 datasheet tpm-4100_tp-4100

📄 Datasheet TPM / TP-4100

📄 User manual
