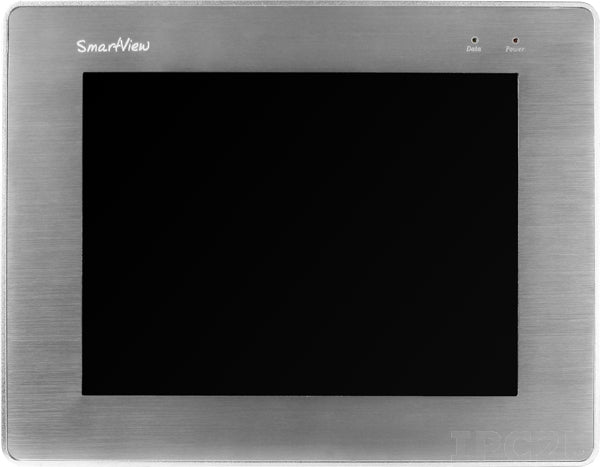

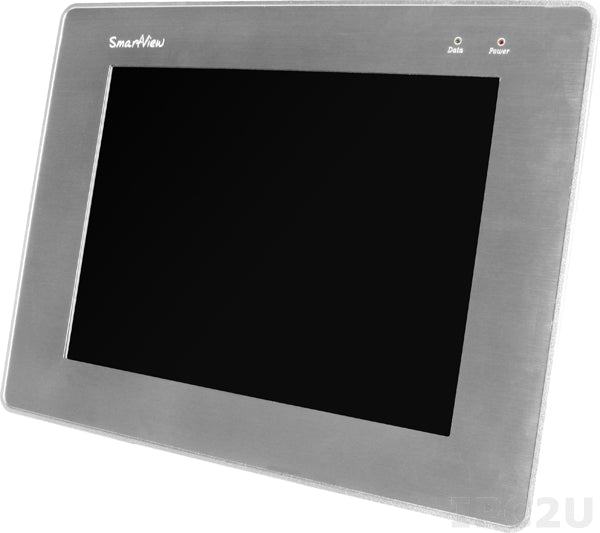

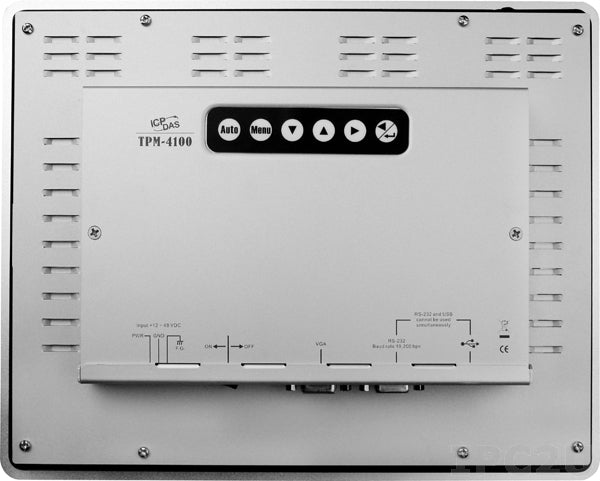

TPM-4100/NP

TPM-4100/NP

ICP DAS
Ціна за запитом
10.4" (800 x 600) resistive touch panel monitor with RS-232 or USB interface Accessories: VGA cable, RS-232 cable, USB cable, Mounting clamps and screws, Aluminum Casing, without power adapter

Specification

Construction

Construction ChassisAluminium Chassis
Mounting ConfigurationPanel
Protection Level of Front Side (Panel)IP65

Display

Display TypeLCD TFT
Diagonal10.4 "
Maximum resolution800x600 Dots
Brightness400 Cd/m2
Contrast Ratio500~1
Input InterfaceVGA

Touch Screen

Touch Screen TypeResistive
InterfaceRS-232, USB

System Power Input

Input Voltage DC12...48 V
Power Consumption8.5 W

Operating Conditions

Operating Temperature-20...70 °C

Dimensions and weight

Width293 mm
Height231 mm
Depth53 mm

Files

Documentation

📄 Datasheet TPM / TP-4100

📄 TP-xxxx Usermanual
