Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Wall, Wall VESA 100, VESA 200 |
| Protection Level of Front Side (Panel) | IP54 |
| Type | Fanless |
Display | |
| Display Type | LCD |
| Diagonal | 23.8 " |
| Maximum resolution | 1920x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 350 Cd/m2 |
CPU | |
| Processor Installed | Intel Atom x5-E3930 |
| Socket | CPU onboard |
| Max CPU frequency | 1.8 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Ethernet | |
| Controller Type | Intel i210-AT, Intel i210AT 10/100/1000 Mbps |
| 10/100/1000 Mbit/s | 2 |
| 10 Gbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek ALC886 |
Drive interfaces | |
| M.2 | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

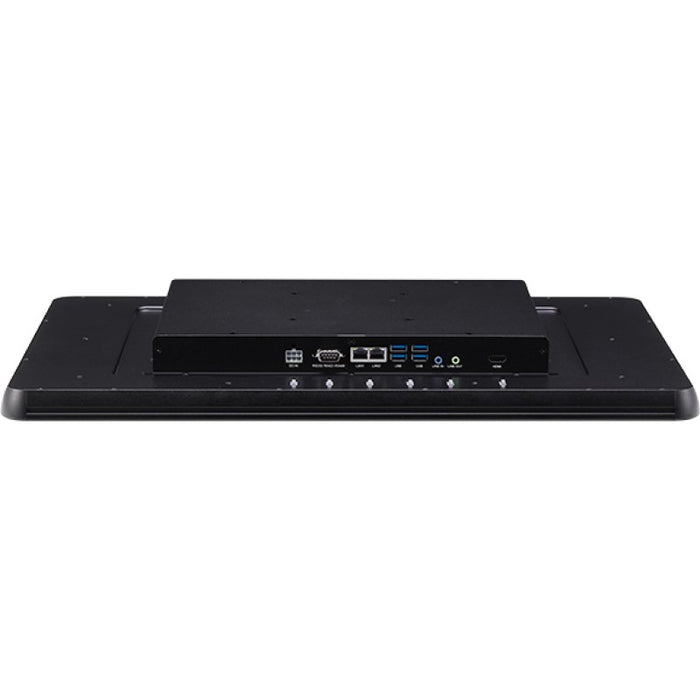

| Connectors | DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Linux OS, Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 580.31 mm |
| Height | 354.6 mm |
| Depth | 55.5 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Vibration | - IEC60068-2-64 - Operating: 1G. random. 5-500Hz. 1hr/axis (w/ storage) |
| Shock | - IEC60068-2-32 - ISTA-2A STD - 10.4kg (packing weight) & 81cm (falling height) |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Vehicle | E-Mark |
