Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Protection Level of Chassis | IP54 |
Display | |
| Display Type | LCD TFT |
| Diagonal | 7 " |
| Maximum resolution | 800x480 Dots |
| Brightness | 1000 Cd/m2 |
| Contrast Ratio | 1000~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Atom E3827 |
| Socket | CPU onboard |
| Max CPU frequency | 1.75 GHz |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 1 |
| RS-232 | 1 |
| USB Total | 1 |
| USB v3.x | 1 |
Drive interfaces | |
| CFast Slots | 1 |
| SD Slots | 1 |
Extension Slots | |
| SIM Card slots | Yes |
Connectors | |

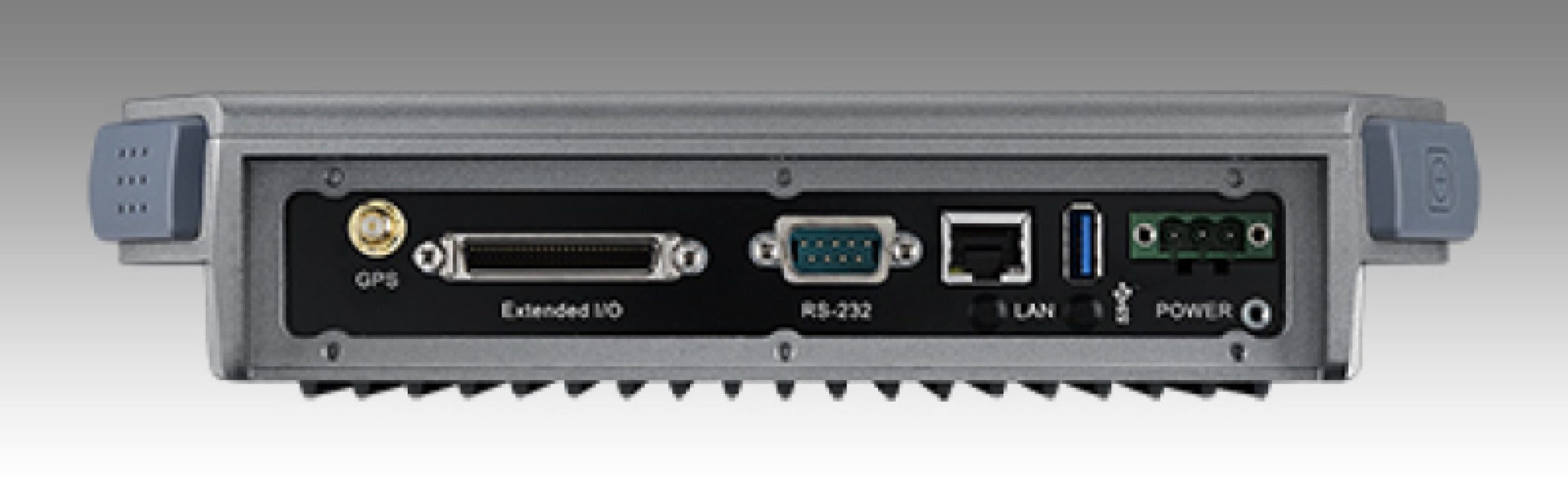

| Connectors | DB9, RJ45 Ethernet, 1xUSB, DC Input |
Software | |
| Operating System Compatibility | Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS, Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 255.7 mm |
| Height | 161 mm |
| Depth | 56 mm |
Operating Conditions | |
| Operating Temperature | -30...60 °C |
| Vibration | MIL-STD-810G. EN60721-3(5M3) |
| Shock | MIL-STD-810G. EN60721-3(5M3) |
Standards and Certifications | |
| Certifications | CE, FCC |
| Rolling Stock | EN 50155 |
| Safety | CCC, UL/cUL, CB |
| Vehicle | SAE J1455, ISO 7637-2, E-Mark |
