System Architecture | |
| Form Factor | Micro ATX |
CPU | |
| СPU Generation/Family | Coffee Lake, Coffee Lake Refresh |
| Socket | LGA1151 |
Chipset | |
| Chipset | Intel Q370 |
Memory | |
| Socket Type | 4xDDR4 DIMM 288pin |
| ECC | No |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DVI-D, HDMI, VGA |
Ethernet | |
| Controller Type | Intel i219-V 10/100/1000 Mbps, Realtek RTL8111HS |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 4 |
| USB Total | 10 |
| USB 2.0 | 4 |
Audio | |
| Audio Controller | Realtek HD Audio Codec |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
Extension Slots | |
| Total | 5 |
| PCI Express x16 | 1 |
| PCI Express x4 | 2 |
| PCI Express x1 | 1 |
| M.2 | 1 |
Connectors | |
| Internal Ports | COM, 6xSATA 3 |

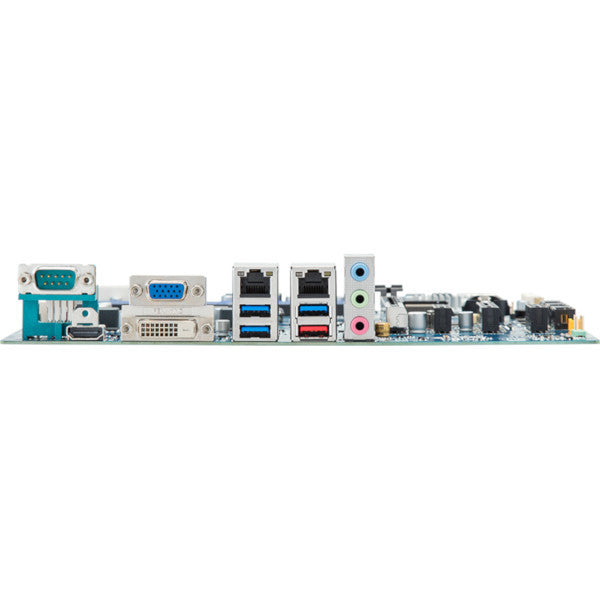

| Connectors | 24pin ATX, DB9, DVI-D, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, 8-pin ATX |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 244 mm |
| Length | 244 mm |
