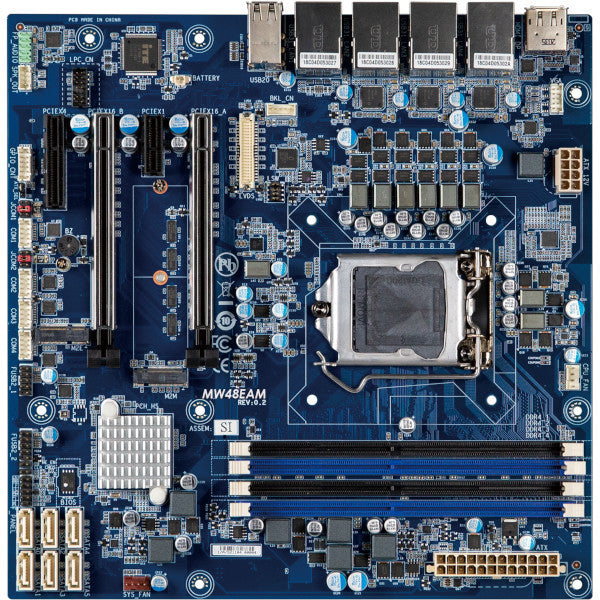

System Architecture | |
| Form Factor | Micro ATX |
CPU | |
| СPU Generation/Family | Comet Lake, Rocket Lake-S |
| CPU Support Type | Celeron, Core i3, Pentium, Xeon |
| Socket | LGA1200 |
Chipset | |
| Chipset | Intel W480E |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 4xDIMM |
| Maximum Memory | 128 GB |
Graphic | |
| Graphic Controller | Intel Iris Xe Graphics |
| Interfaces | DisplayPort, LVDS, HDMI |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 4 |
| 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 3 |
| RS-232/422/485 | 1 |
| USB Total | 16 |
| USB 2.0 | 8 |
| USB v3.x | 8 |
Audio | |
| Audio Controller | Realtek HD Audio Codec |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
Extension Slots | |
| Total | 6 |
| PCI Express x8 | 2 |
| PCI Express x4 | 1 |
| PCI Express x1 | 1 |
| M.2 | 2 |
Connectors | |
| Internal Ports | 4xCOM, 4xUSB 2.0, 24-pin ATX, GPIO, 8-pin ATX |

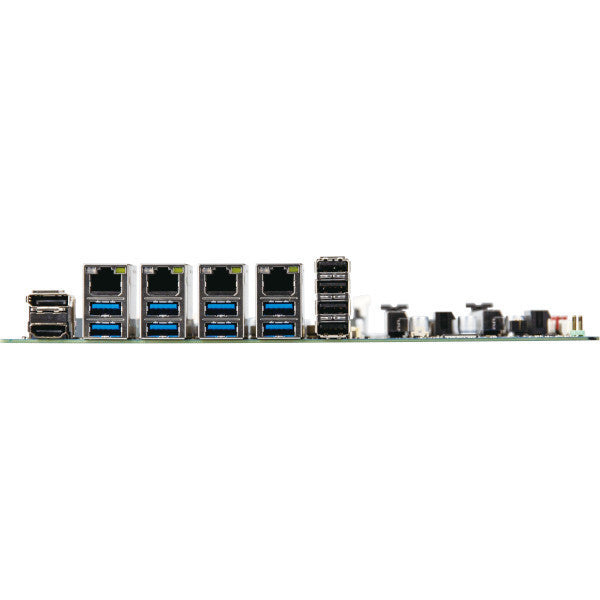

| Connectors | 24pin ATX, 4xDB9, DB15 VGA, HDMI, 4xRJ45, 4xUSB, 12xUSB, Display Port, DB15 GPIO, 8-pin ATX |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 244 mm |
| Length | 244 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
