Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Built-in, Desktop, Wall, DIN-Rail mount |
| Protection Level of Chassis | IP30 |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Atom E3825 |
| Max CPU frequency | 1.33 GHz |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 4 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | HDMI |
Ethernet | |
| Controller Type | Realtek 8111E |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| USB Total | 1 |
| USB v3.x | 1 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

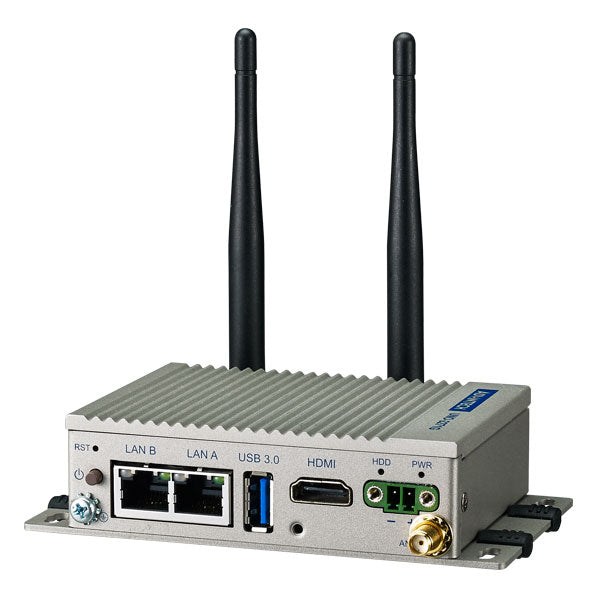

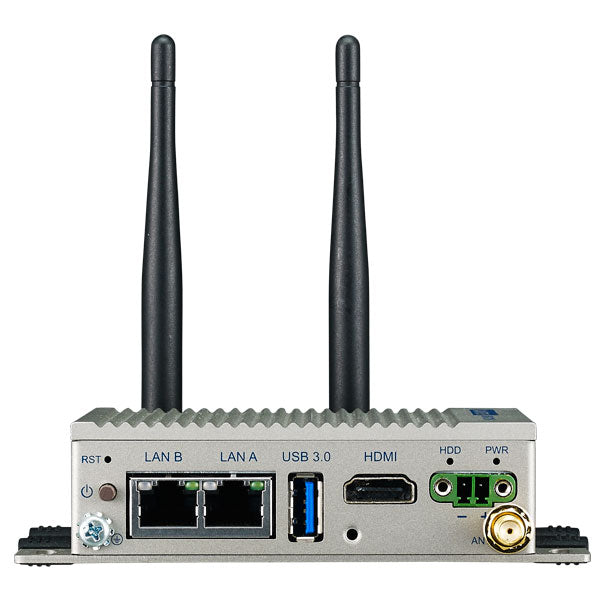

| Connectors | HDMI, 2xRJ45, 1xUSB, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 10...30 V |
| Power Consumption | 20 W |
Software | |
| Operating System Compatibility | Windows 7, Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 100 mm |
| Height | 30 mm |
| Depth | 70 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
| Safety | CCC, UL, BSMI |
| Vibration And Shock | IEC 60068-2-27, IEC 60068-2-64 |
