Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Protection Level of Chassis | IP40 |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Celeron 2980U |
| Max CPU frequency | 1.6 GHz |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 4 GB |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel HD Graphics 5000 |
Ethernet | |
| Controller Type | Intel i210-IT, Intel i218-LM 10/100/1000 Mbps |
| Total Ethernet | 4 |
| 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-422/485 | 2 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage Intenal | 2 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

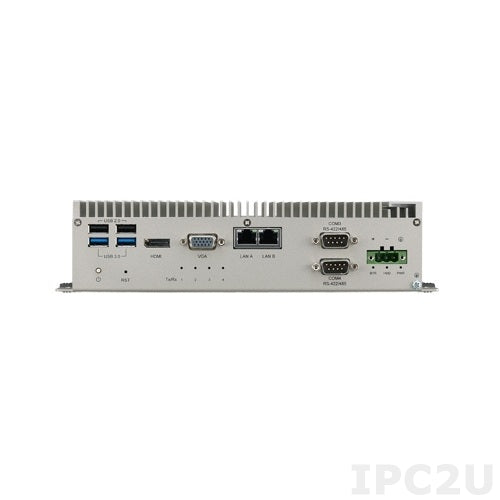

| Connectors | 4xDB9, DB15 VGA, HDMI, 4xRJ45 Ethernet, 4xUSB, HD Audio, DC Input |
System Power Input | |
| Input Voltage DC | 19...29 V |
| Power Consumption | 28 W |
Software | |
| Operating System Compatibility | Windows 7, Windows 8 |
Dimensions and weight | |
| Width | 252 mm |
| Height | 62 mm |
| Depth | 149 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
Standards and Certifications | |
| Certifications | CE/FCC |
| Safety | CCC, UL, BSMI |
| Vibration And Shock | IEC 60068-2-27, IEC 60068-2-64 |
