Construction |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Built-in, Desktop, Panel, Wall |
| Type | Fanless |
CPU |
| Processor Installed | Intel Core 2 Duo L7500 |
| Max CPU frequency | 1.6 GHz |
Memory |
| Form-factor | DDR2 |
| ECC | No |
| Default on Board Memory | 4 GB |
| Assembly | Fixed on Board |
Graphic |
| Graphic Controller | Integrated in Chipset |
Ethernet |
| Controller Type | Intel 82574L 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 5 |
| USB 2.0 | 5 |
Digital Input |
| Isolation DIO | Yes |
Audio |
| Audio Controller | AC97 |
Drive interfaces |
| CompactFlash Slots | 1 |
Storage Cage |
| Number Of Cage External | 2 |
| 2.5" Cage Intenal | 2 |
Extension Slots |
| Total | 4 |
| PCI Express x1 | 1 |
| PCI | 3 |
Additional Functions |
| Watchdog timer type | Software |
Connectors |

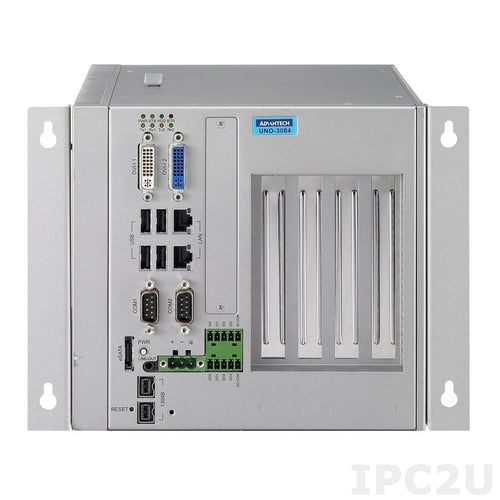

| Connectors | 2xDB9, 2xIEEE-1394b, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, DIO (terminal block), eSATA, 2xDVI |
System Power Input |
| Input Voltage DC | 9...36 V |
| Power Consumption | 40 W |
Software |
| Operating System Compatibility | Windows XP Embedded, Windows 7, Windows Embedded Standard 7, Linux OS, QNX |
Dimensions and weight |
| Width | 195 mm |
| Height | 238 mm |
| Depth | 177 mm |
Operating Conditions |
| Operating Temperature | -10...55 °C |
Standards and Certifications |
| Certifications | CE, FCC Class A |
| Safety | CCC, UL |
| Vibration And Shock | IEC 60068-2-27, IEC 60068-2-64 |
