Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Display | |
| Display Type | LED Character |
CPU | |
| Processor Installed | 80186 |
| Max CPU frequency | 0.08 GHz |
Memory | |
| Default on Board Memory | 0 GB |
Installed drive | |
| Flash Memory Capacity | 512 MB |
| EEPROM Memory Capacity | 16 kB |
| Non-volatile NVRAM memory capacity | 31 Byte |
| Built-in NAND Flash Capacity | 256 MB |
Drive interfaces | |

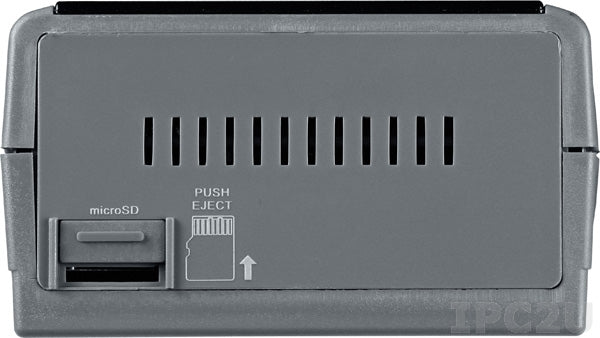

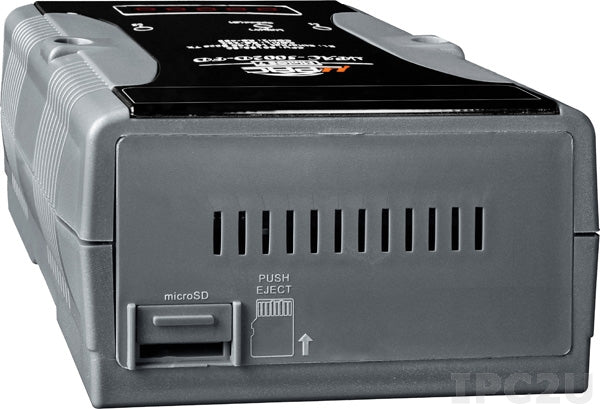

| MicroSD | 1 |
Expansion Module | |
| Quantity of Slots | 1 |
| Supported Module | XW - board |
Software | |
| Operating System Installed | Mini OS7 |
| Programming Method | C/C++ |

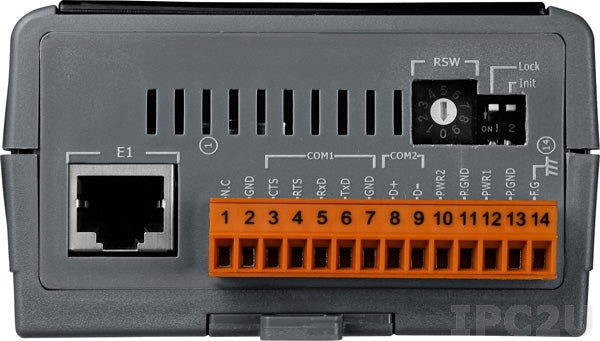

Ethernet | |
| 10/100 Mbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-485 | 1 |
Additional Functions | |
| Watchdog timer type | Hardware |
Dimensions and weight | |
| Width | 91 mm |
| Depth | 123 mm |
| Height | 52 mm |
System Power Input | |
| Input Voltage DC | 12...48 V |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
