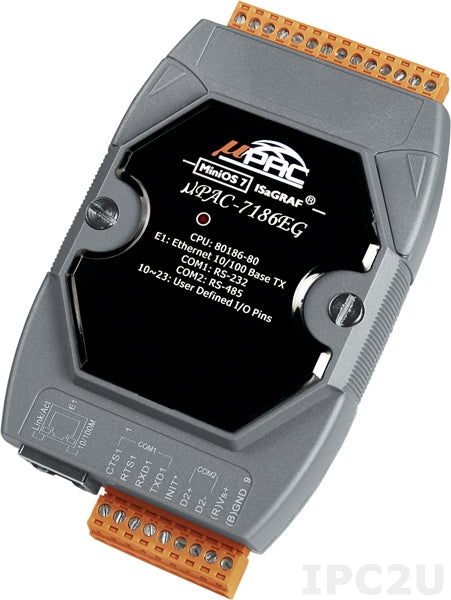

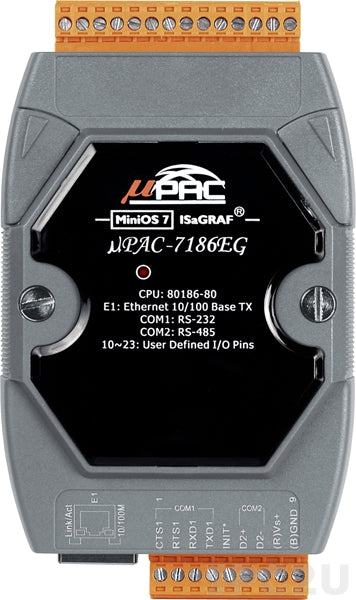

uPAC-7186EG

Name: uPAC-7186EG
Brand: ICP DAS
SKU: 03882700
Availability: InStock

ICP DAS

Ціна за запитом

PC-compatible 80MHz Industrial Controller, 512kb Flash, 640kb SRAM, 2xRS232/485, Ethernet, MiniOS7, IsaGRAF

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
CPU
Processor Installed	80186
Max CPU frequency	0.08 GHz
Memory
SRAM	640 kB
Installed drive
Flash Memory Capacity	0.512 MB
EEPROM Memory Capacity	16 kB
Non-volatile NVRAM memory capacity	31 Byte
Expansion Module
Quantity of Slots	1
Supported Module	X - board
Software
Programming Method	IEC 61131-3
Development Software	ISaGRAF
Ethernet
10/100 Mbit/s	1
Interfaces
COM Total	2
RS-232	1
RS-485	1
Additional Functions
Watchdog timer type	Hardware
Dimensions and weight
Width	72 mm
Depth	123 mm
Height	35 mm
System Power Input
Input Voltage DC	10...30 V
Operating Conditions
Operating Temperature	-25...75 °C
