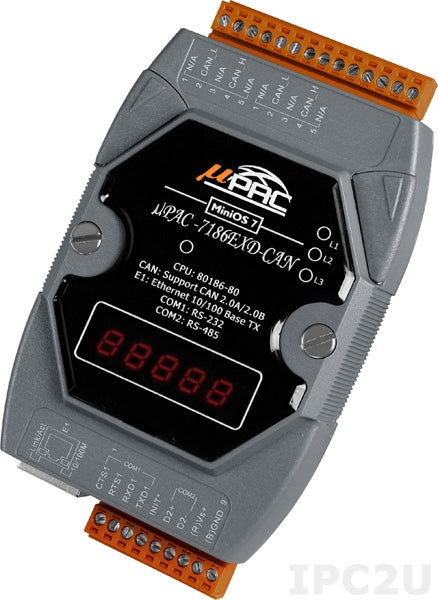

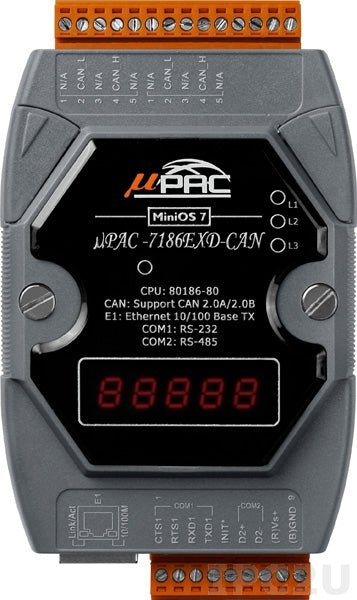

uPAC-7186EXD-CAN

Name: uPAC-7186EXD-CAN
Brand: ICP DAS
SKU: 03826700
Availability: InStock

ICP DAS

Ціна за запитом

PC-compatible 80MHz Industrial Controller, 512kb Flash, 512kb SRAM, 1xRS232, 1xRS485, CAN, Ethernet, 7-Segment Display, MiniOS7

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Display
Display Type	LED Character
CPU
Processor Installed	80186
Max CPU frequency	0.08 GHz
Memory
SRAM	512 kB
Installed drive
Flash Memory Capacity	0.512 MB
EEPROM Memory Capacity	16 kB
Non-volatile NVRAM memory capacity	31 Byte
Software
Operating System Installed	Mini OS7
Programming Method	C/C++
Ethernet
10/100 Mbit/s	1
Interfaces
COM Total	2
RS-232	1
RS-485	1
Industrial Interfaces
CAN Port	1
Supported Protocols
Industrial Protocols	CAN
Additional Functions
Watchdog timer type	Hardware
Dimensions and weight
Width	72 mm
Depth	123 mm
Height	35 mm
System Power Input
Input Voltage DC	10...30 V
Operating Conditions
Operating Temperature	-25...75 °C
