Construction | |
| Construction Chassis | ABS plastic chassis |
| Mounting Configuration | Built-in, Desktop, Panel, Wall |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 250 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Celeron J1900 |
| Socket | CPU onboard |
| Max CPU frequency | 2.42 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| ECC | No |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Realtek RTL8111G-CG 10/100/1000Mbps |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Wi-Fi | |
| Wi-Fi Standard | 802.11a/b/g/n |
Interfaces | |
| COM Total | 2 |
| RS-232 | 2 |
| USB Total | 5 |
| USB 2.0 | 4 |
| USB v3.x | 1 |
| LPT | LPT |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

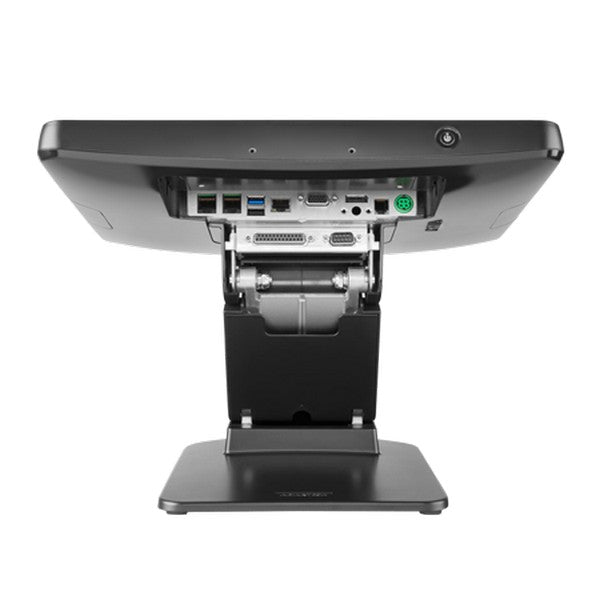

| Connectors | DB15 VGA, RJ11, RJ45 Ethernet, 3xUSB, DC Input, Display Port, 2xRJ-48 (COM) |
System Power Input | |
| Input Voltage AC | 100...240 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 60 W |
Software | |
| Operating System Compatibility | Android, Linux kernel 3.x, Windows 8.1, Windows 7 Professional, POSReady, Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 354 mm |
| Height | 327 mm |
| Depth | 237 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
| Vibration | 5~500Hz 0.5Grms |
Standards and Certifications | |
| Certifications | CE, FCC, VCCI |
| Safety | CCC, CB, LVD, UL, BSMI |
