Construction |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Analog Input |
| Total channels of analog input | 8 |
| Number of Bits | 16 Bit |
| Voltage range | +/-15 mV, +/-50 mV, +/-100 mV, +/-150 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V |
| Current range | 0...20 mA, 4...20 mA, -20...+20 mA |
| Sampling rate | 10 Hz |
| Differential channels | 8 |
| Thermocouple | J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С |
Connectors |

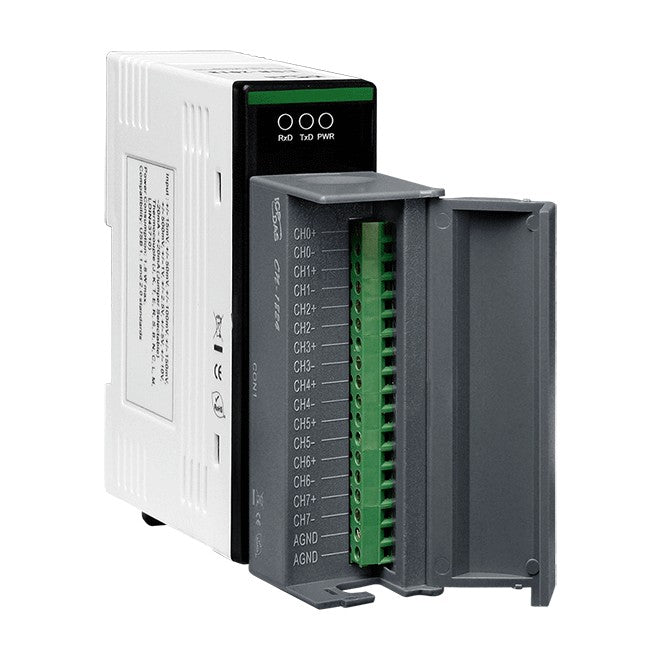

| Connectors | Screw Terminal |
Additional Functions |
| Watchdog timer type | Hardware, Software |
Dimensions and weight |
| Width | 33 mm |
| Depth | 78 mm |
| Height | 107 mm |
Operating Conditions |
| Operating Temperature | -25...75 °C |
Standards and Certifications |
| EMS | IEC 61000-4-2 |
