Ціна за запитом

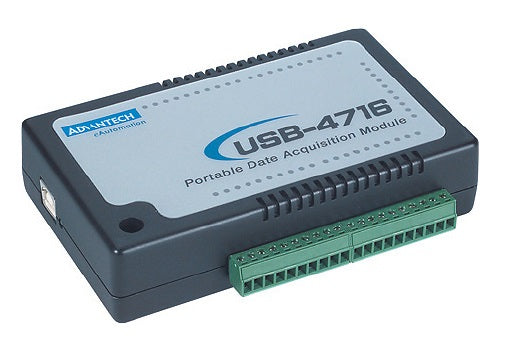

200 kS/s, 16-bit, 16-ch Multifunction USB Module, 5VDC-in



Construction ChassisPlastic Chassis
Mounting ConfigurationDesktop

Analog Input

Total channels of analog input16
Number of Bits16 Bit
Voltage range+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V, 0...2.5 V, 0...5 V, 0...10 V
Sampling rate200 Hz
Single-Ended channels16
Differential channels8

Analog Output

Channels of analog input2
DAC Bit Rate16 Bit
Voltage range0...5 V, 0...10 V, +/-5 V, +/-10 V

Digital Input

Total channels of digital input8
TypeWet contact
Level of Logic "0"0~1 V
Level of Logic "1"2~5 V
Number of channels1
Counter capacity32 Bit
Max frequency1 kHz

Digital Output

Total channels of digital output8
TypeOpen collector
Output voltage0~5 V
Max. load current6 mA


ConnectorsScrew Terminal

System Power Input

Input Voltage DC5...5 V

Dimensions and weight

Width132 mm
Depth32 mm
Height80 mm

Operating Conditions

Operating Temperature0...60 °C
