USB-4761-BE

Name: USB-4761-BE
Brand: Advantech
SKU: 07278900
Availability: InStock

Advantech

Ціна за запитом

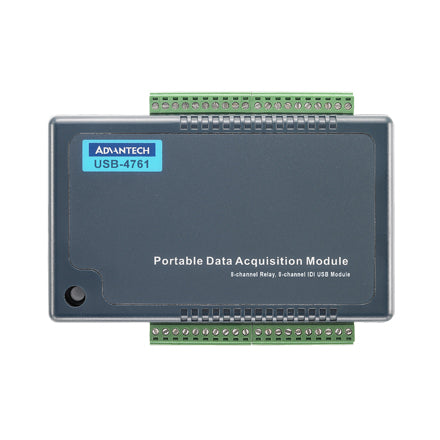

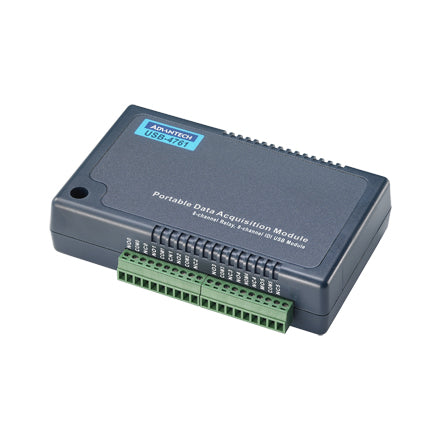

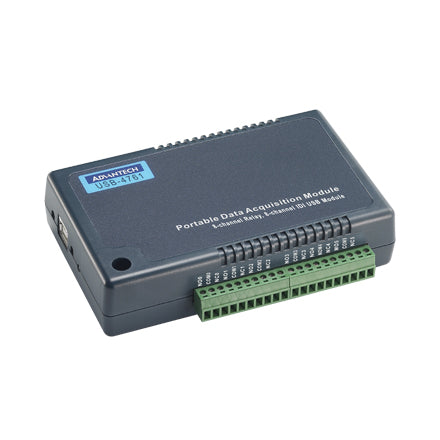

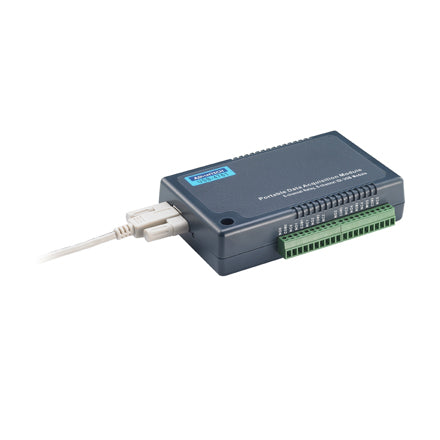

8ch Relay & 8ch Isolated DI USB Module, 30 VDC @ 1 A, 110 VAC @ 0.3 A, 120 VAC @ 0.5 A , 240 VAC @ 0.25 A

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Desktop
Expansion Module
io_type	di_do
Digital Input
Total channels of digital input	8
Type	Wet contact
Level of Logic "0"	0~2 V
Level of Logic "1"	5~30 V
Sink/Source	Sink
Isolation of Digital Input	2500 V
Digital Output
Total channels of digital output	8
Type	Electromagnitic relay
Relay (Form C)	8
Contact rating of relay (Form C)	2A@30V DC, 0.25A@250V AC
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	5...5 V
Dimensions and weight
Width	132 mm
Depth	32 mm
Height	80 mm
Operating Conditions
Operating Temperature	0...60 °C

Документація
