Construction | |
| Construction Chassis | Plastic Chassis with Aluminum Heatsink |

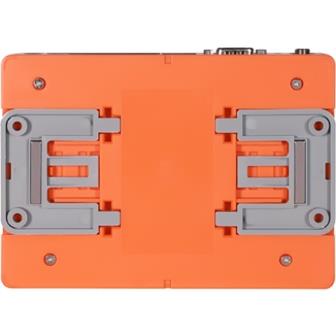

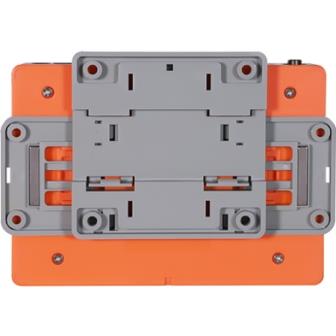

| Mounting Configuration | Desktop, DIN-Rail mount, Wall VESA 75, Pole Mount, Magnetic mount |
| Type | Fanless |
CPU | |
| Processor Installed | ARM Cortex-A17 |
| Socket | CPU onboard |
| CPU Support Type | ARM Cortex |
| Max CPU frequency | 1.6 GHz |
Memory | |
| Form-factor | DDR3 |
| Default on Board Memory | 2 GB |
| Maximum Memory | 2 GB |
Graphic | |
| Graphic Controller | Mali-T764 |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 4 |
Drive interfaces | |
| MicroSD | 1 |
Extension Slots | |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | 1 |
Connectors | |

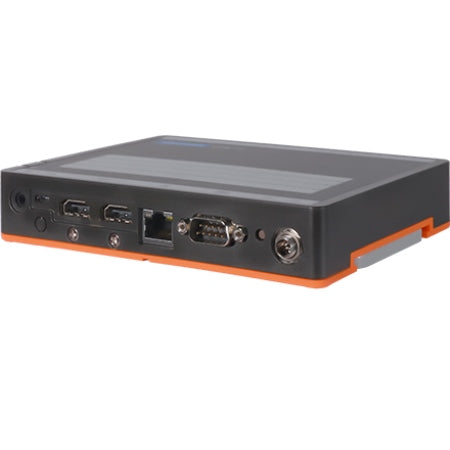

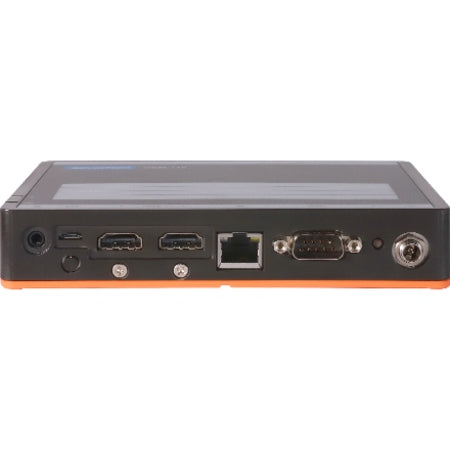

| Connectors | DB9, 2xHDMI, RJ45, 4xUSB, Line Out, DC Input, SIM Card Slot, 1xMicro USB, MicroSD card slot |
System Power Input | |
| Input Voltage DC | 12...12 V |
| Power Consumption | 36 W |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Installed | Android |
Dimensions and weight | |
| Width | 156 mm |
| Height | 88 mm |
| Depth | 112 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
| Safety | CCC, CB, UL, BSMI |
