Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop |
| Type | Fanless |
CPU | |
| Socket | LGA1151 |
| CPU Support Type | Core i3, Core i5, Core i7 |
Chipset | |
| Chipset | Intel H110 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Realtek 8111G |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 4 |
| USB Total | 8 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Digital Input-Output | |
| Channels of DIO | 16 |
Audio | |
| Audio Controller | Realtek ALC888 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage Intenal | 2 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

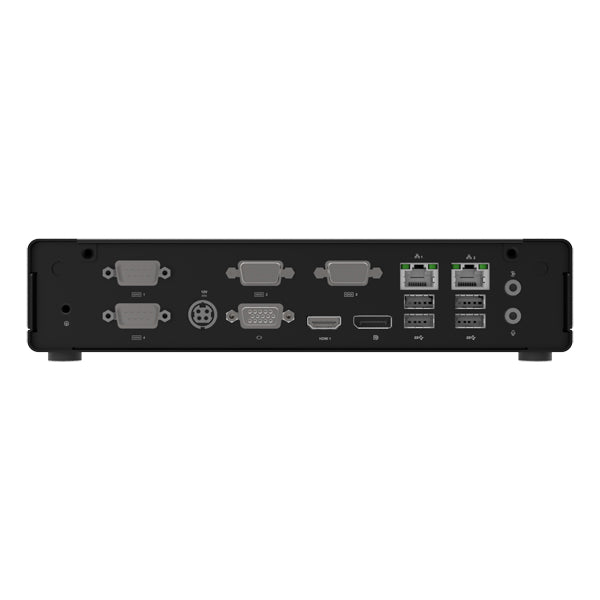

| Connectors | 4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC Input, Display Port |
System Power Input | |
| Input Voltage DC | 19...19 V |
| Power Consumption | 90 W |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 7, Windows 10 |
Dimensions and weight | |
| Width | 157 mm |
| Height | 210 mm |
| Depth | 230 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Vibration | 3 Grms |
| Shock | 30 G |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| Safety | CCC, CB, UL, BSMI |
