Construction | |
| Construction Chassis | Metal Chassis, Aluminium Chassis |
| Mounting Configuration | Built-in, Wall |
| Protection Level of Chassis | IP40 |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Coffee Lake, Coffee Lake Refresh |
| Socket | LGA1151 |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7 |
Chipset | |
| Chipset | Intel C246 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM 260-pin |
| ECC | Yes |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps |
| Total Ethernet | 9 |
| 10/100/1000 Mbit/s | 1 |
| PoE+ 10/100/1000 Mbit/s | 16 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 4 |
| USB v3.x | 4 |
Digital Input-Output | |
| Channels of DIO | 8 |
Digital Input | |
| Isolation DIO | Yes |
Drive interfaces | |
| SATA 3 | 4 |
| RAID Levels | 1 |
| mSATA | 2 |
Storage Cage | |
| Number Of Cage External | 4 |
| 2.5" Cage External | 4 |
Extension Slots | |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 2 |
LED / Controls | |
| LED | 1xHDD LED, Power LED |
Connectors | |

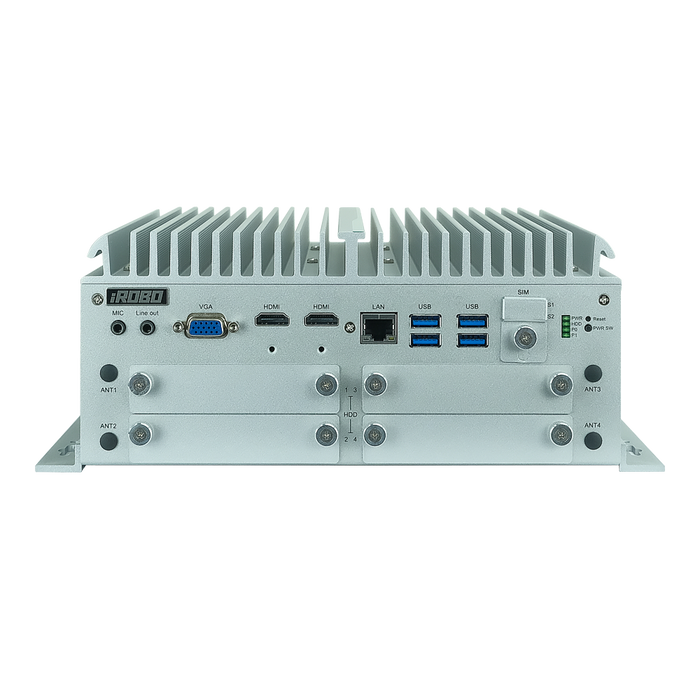

| Connectors | DB15 VGA, 2xHDMI, Mic In, Line Out, DC input (terminal block), 2xSIM Card Slot, 9xRJ45 Ethernet |
System Power Input | |
| Input Voltage DC | 9...36 V |
Power Supply | |
| Output Power | 120 W |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 281 mm |
| Height | 82.2 mm |
| Depth | 207 mm |
Operating Conditions | |
| Operating Temperature | -40...70 °C |
| Humidity | 5-95% |
| Vibration | 3 Grms w/ SSD (5 ~ 500 Hz. X/Y/Z direction; random) |
Standards and Certifications | |
| Certifications | CE, CE/FCC, FCC Class A |
| EMS | EN 55035 |
| Vehicle | E-Mark |
