Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Wall, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 250 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Celeron J1900 |
| Max CPU frequency | 2.42 GHz |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 2 |
| USB Total | 4 |
| USB 2.0 | 3 |
| USB v3.x | 1 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |

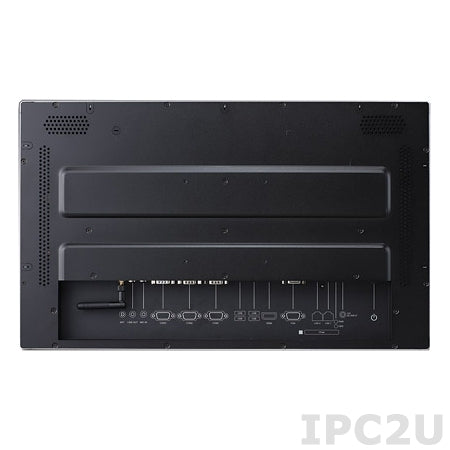

| Connectors | 2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 60 W |
Software | |
| Operating System Compatibility | Windows Embedded Standard 7, Windows Embedded Standard 8, Ubuntu |
Dimensions and weight | |
| Width | 517.64 mm |
| Height | 313.51 mm |
| Depth | 43.5 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
| Vibration | 0.5G |
| Shock | 5 G peak acceleration (11 msec. duration) |
Standards and Certifications | |
| Certifications | CE, FCC |
| Safety | CCC, CB, UL, BSMI |
