Specification
System Architecture | |

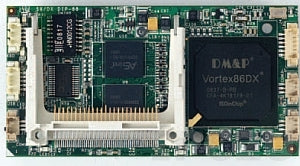

| Form Factor | uProcessor CPU Module |
Construction | |
| Type | Fanless |
CPU | |
| CPU Support Type | Vortex86 |
| Processor Installed | Vortex86DX |
| Max CPU frequency | 0.8 GHz |
Chipset | |
| Chipset | Vortex86 System-on-Chip |
Memory | |
| Form-factor | DDR2 |
| Default on Board Memory | 0.25 GB |
| Assembly | Fixed on Board |
Ethernet | |
| Total Ethernet | 1 |
| 10/100 Mbit/s | 1 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 4 |
| USB Total | 3 |
| USB 2.0 | 3 |
Drive interfaces | |
| CompactFlash Slots | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | 6-pin JTAG, 5-pin USB 2.0, 4-pin KBD, 3x3-pin RS-232 |
Dimensions and weight | |
| Width | 46 mm |
| Length | 90 mm |
Operating Conditions | |
| Operating Temperature | -20...70 °C |
