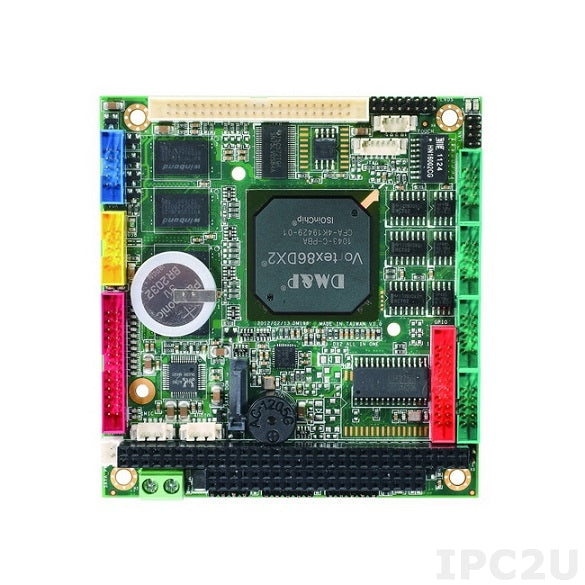

VDX2-6554-V2-512

Name: VDX2-6554-V2-512
Brand: ICOP
SKU: 09829800
Availability: InStock

ICOP

Ціна за запитом

PC/104 Vortex86DX2 800MHz CPU Module with 512MB RAM, VGA, LCD, LVDS, LAN, 4xCOM, 2xUSB, Audio, GPIO, PWMx12, operating temp -20..70 C

Специфікація

Specification

System Architecture
Form Factor	PC/104
Construction
Type	Fanless
CPU
CPU Support Type	Vortex86
Processor Installed	Vortex86DX2
Max CPU frequency	0.8 GHz
Memory
Form-factor	DDR2
Default on Board Memory	0.5 GB
Assembly	Fixed on Board
Graphic
Interfaces	VGA, LVDS
Ethernet
Total Ethernet	1
10/100 Mbit/s	1
Interfaces
COM Total	4
RS-232/485	4
USB Total	2
USB 2.0	2
LPT	LPT
Digital Input-Output
Channels of DIO	16
Audio
Audio Controller	Realtek ALC888S
Drive interfaces
SATA 2	1
Extension Slots
PC/104	1
Connectors
Internal Ports	SATA 2, 26-pin LPT, 20-pin GPIO, 16-pin LVDS, 10-pin VGA, 10-pin USB 2.0, 4x10-pin RS-232, 8-pin Ethernet, 5-pin KB, 5-pin MS
Dimensions and weight
Width	90 mm
Length	96 mm
Operating Conditions
Operating Temperature	-20...70 °C
